Reeman Robotics
Moon Knight Robot Chassis
Commercial-grade differential drive AGV/AMR base with open SDK, autonomous obstacle avoidance, and ROS compatibility
60kg
Max Payload
20h
Battery Life
1.0m/s
Top Speed
25m
Laser Range
Open SDK Platform
Fully open hardware and software with API support. Rich documentation aids rapid development and custom integration.
Reduced Development Costs
Stable navigation out of the box. Shorter R&D cycle and lower development overhead for faster time-to-market.
Autonomous Obstacle Avoidance
Dual 3D cameras and lidar enable full-area perception and real-time obstacle avoidance for safer operation.
Cloud Service Platform
Supports remote navigation, real-time data monitoring, and quick map deployment through an intuitive cloud interface.
Customised Development
Highly scalable modular architecture allowing tailored application design to fit specific operational needs.

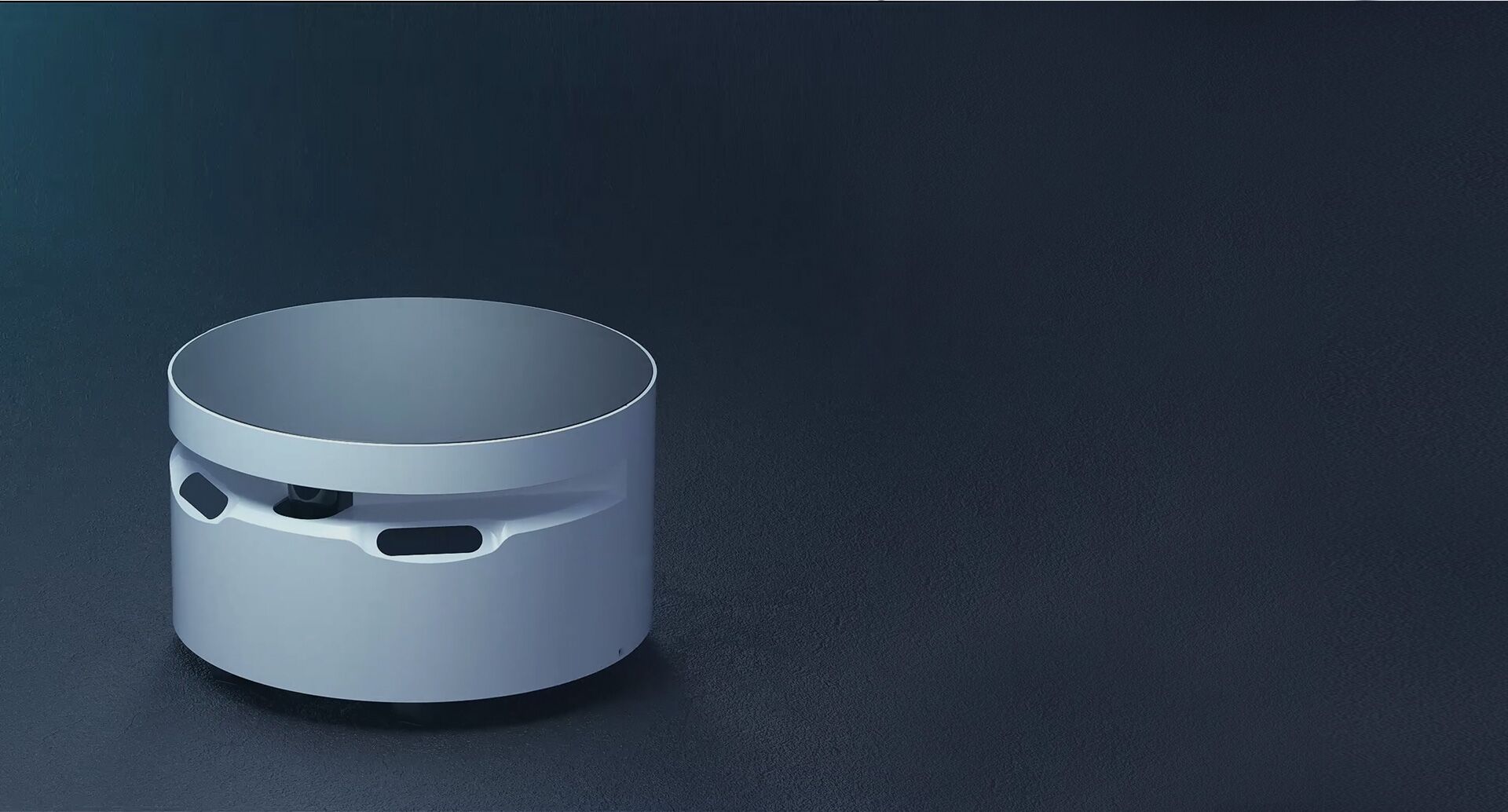

Open SDK Platform
Provide API interface to support customised development of robotic products with comprehensive documentation and sample code.

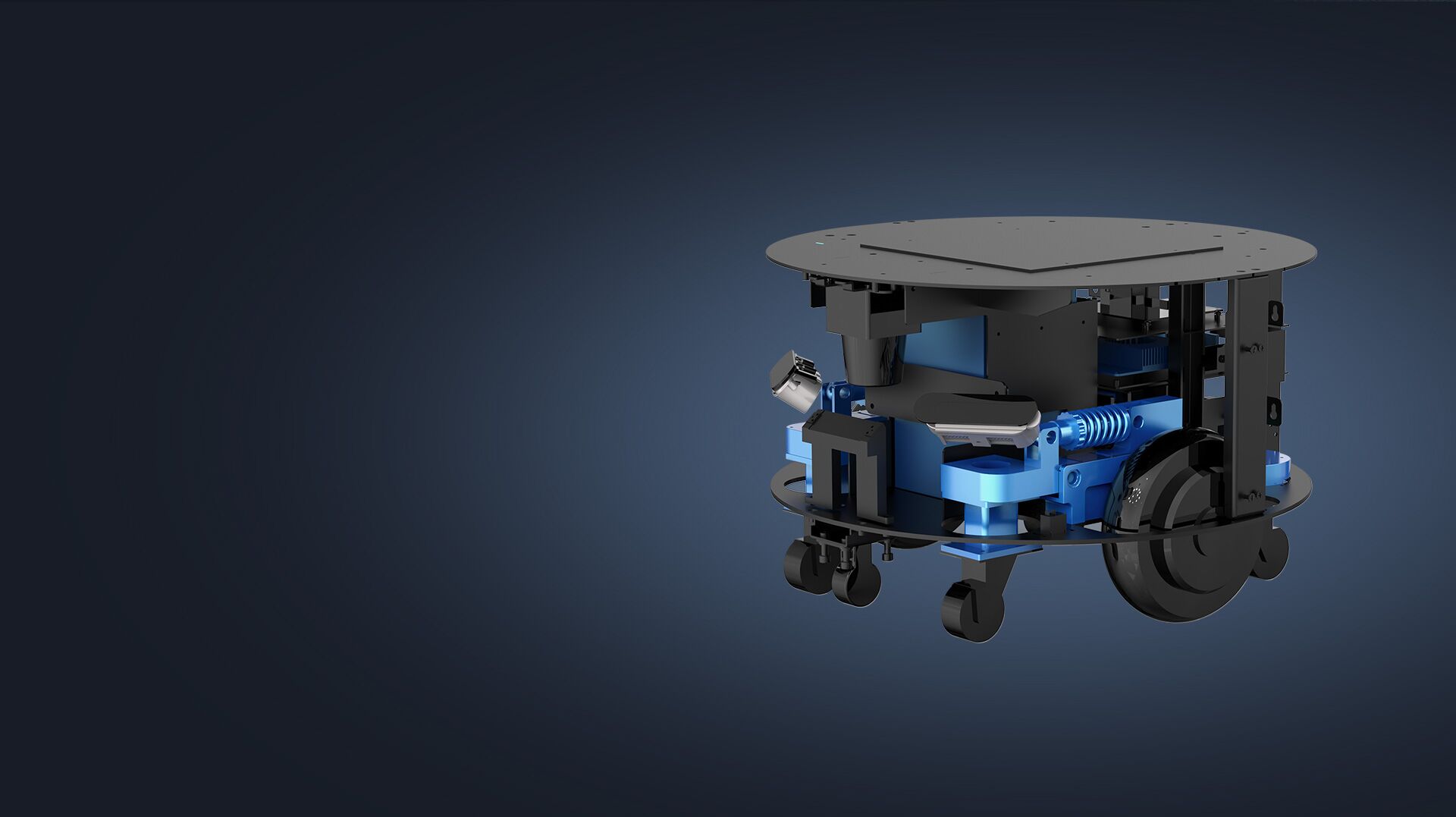

Independent Suspension Structure
Smoother robot movements, smooth steering and less wobbling across uneven indoor surfaces.

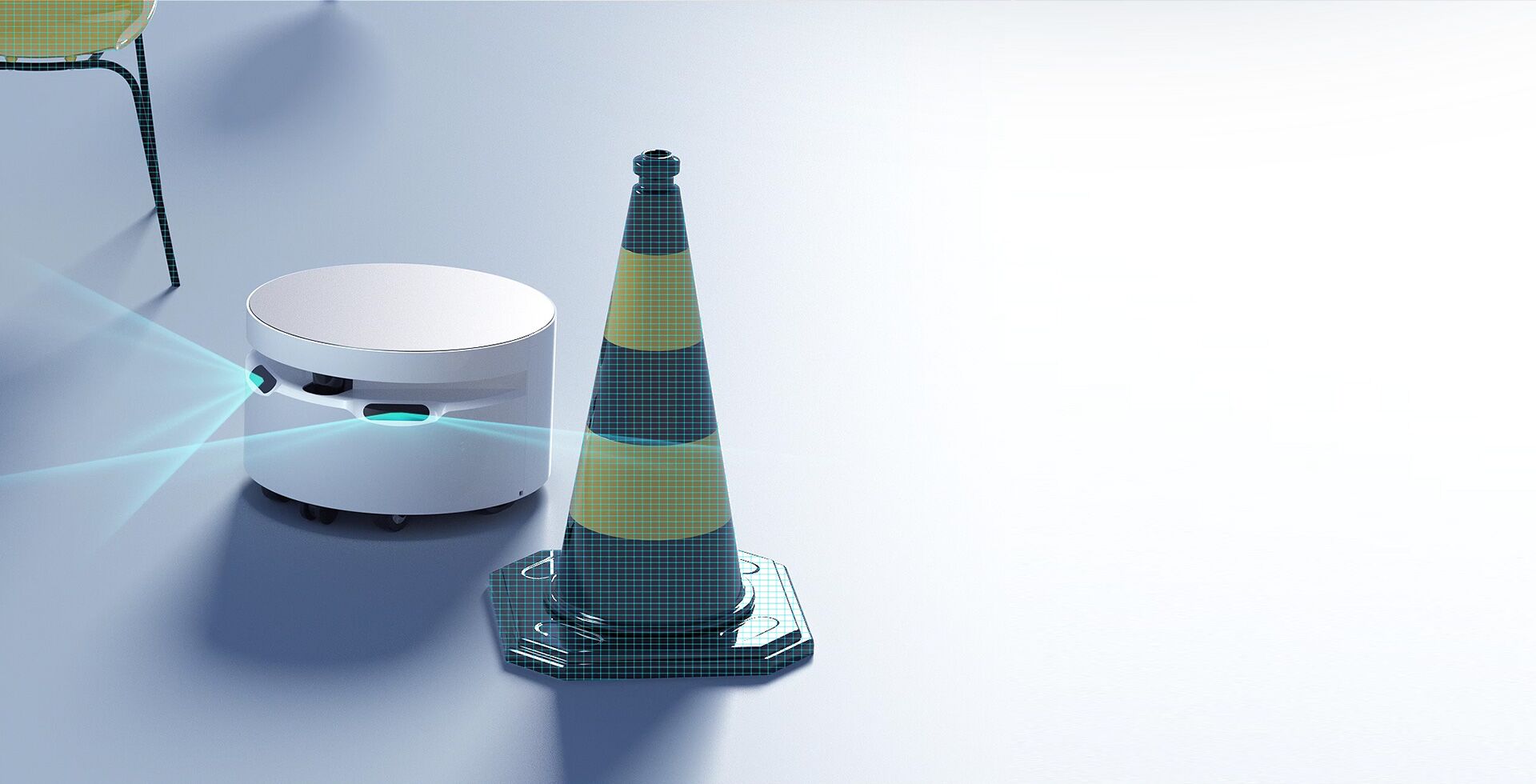

Intelligent Obstacle Avoidance System
Dual 3D cameras plus laser radar for active avoidance and safer operation in dynamic environments.

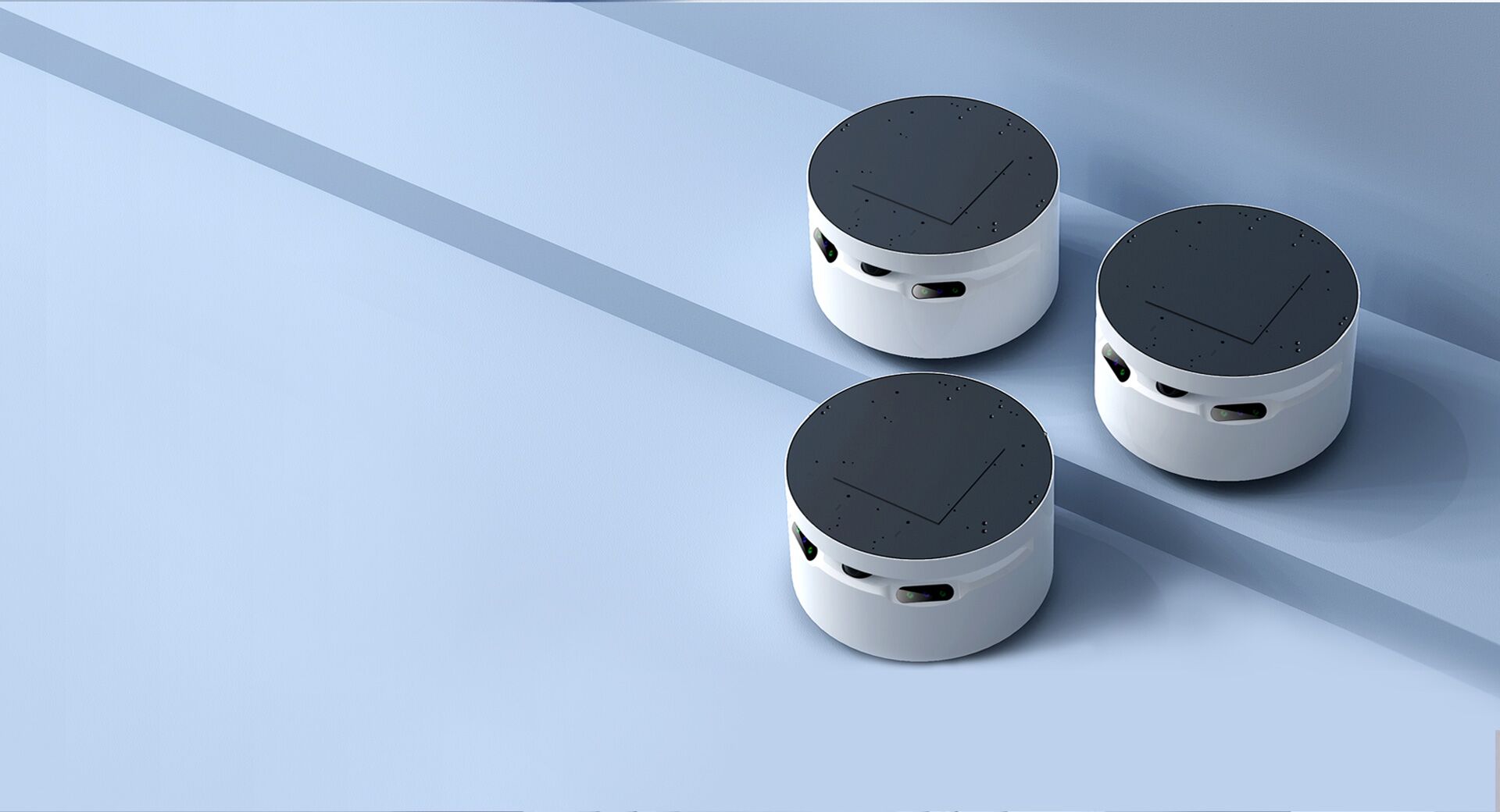

Deployment Without Coding
Deploy autonomous navigation and mapping through an intuitive visual interface without writing a single line of code.

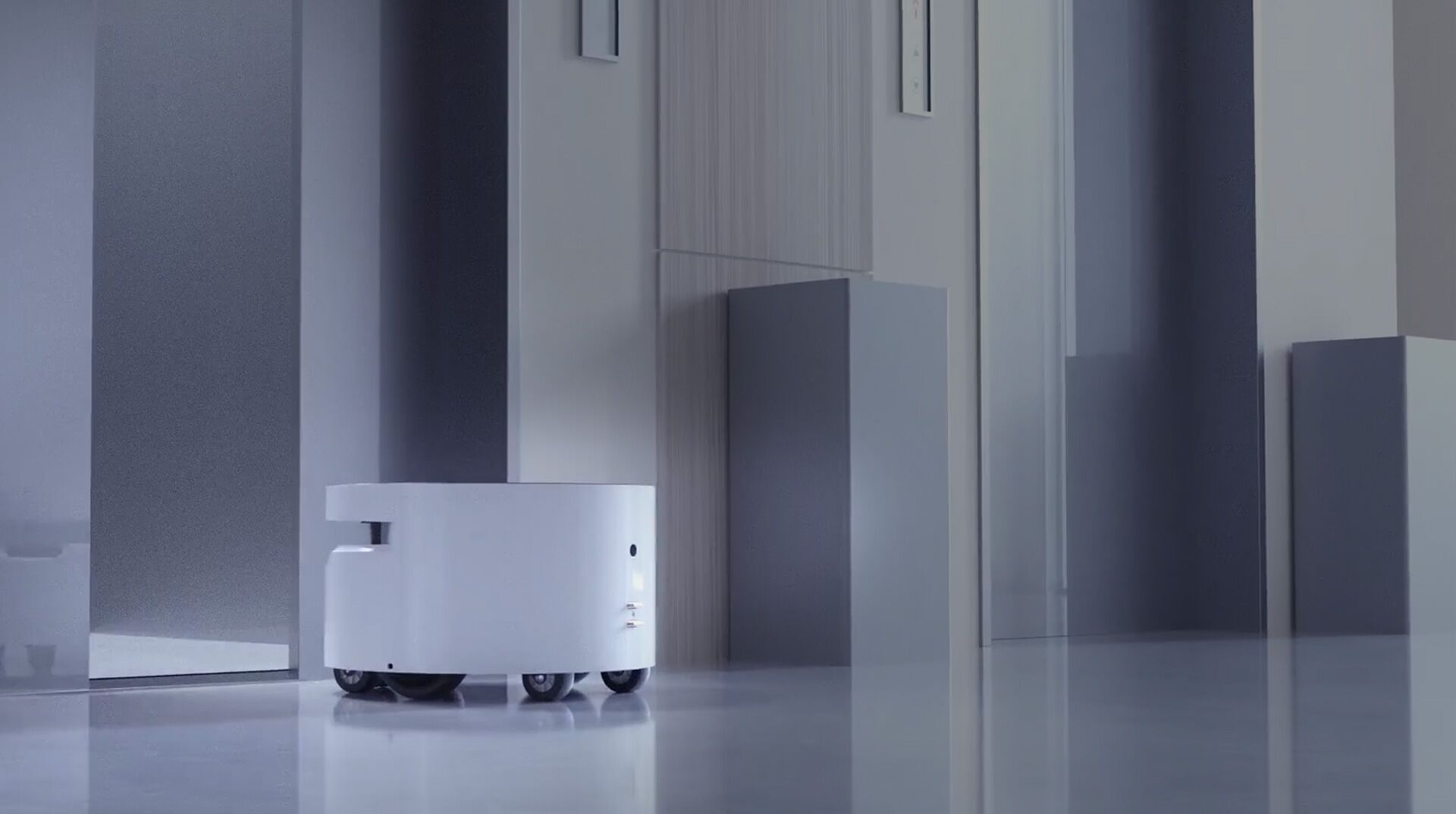

Autonomous Up And Down Lifts
Automatically call lifts and perform delivery tasks across floors for seamless multi-level logistics.

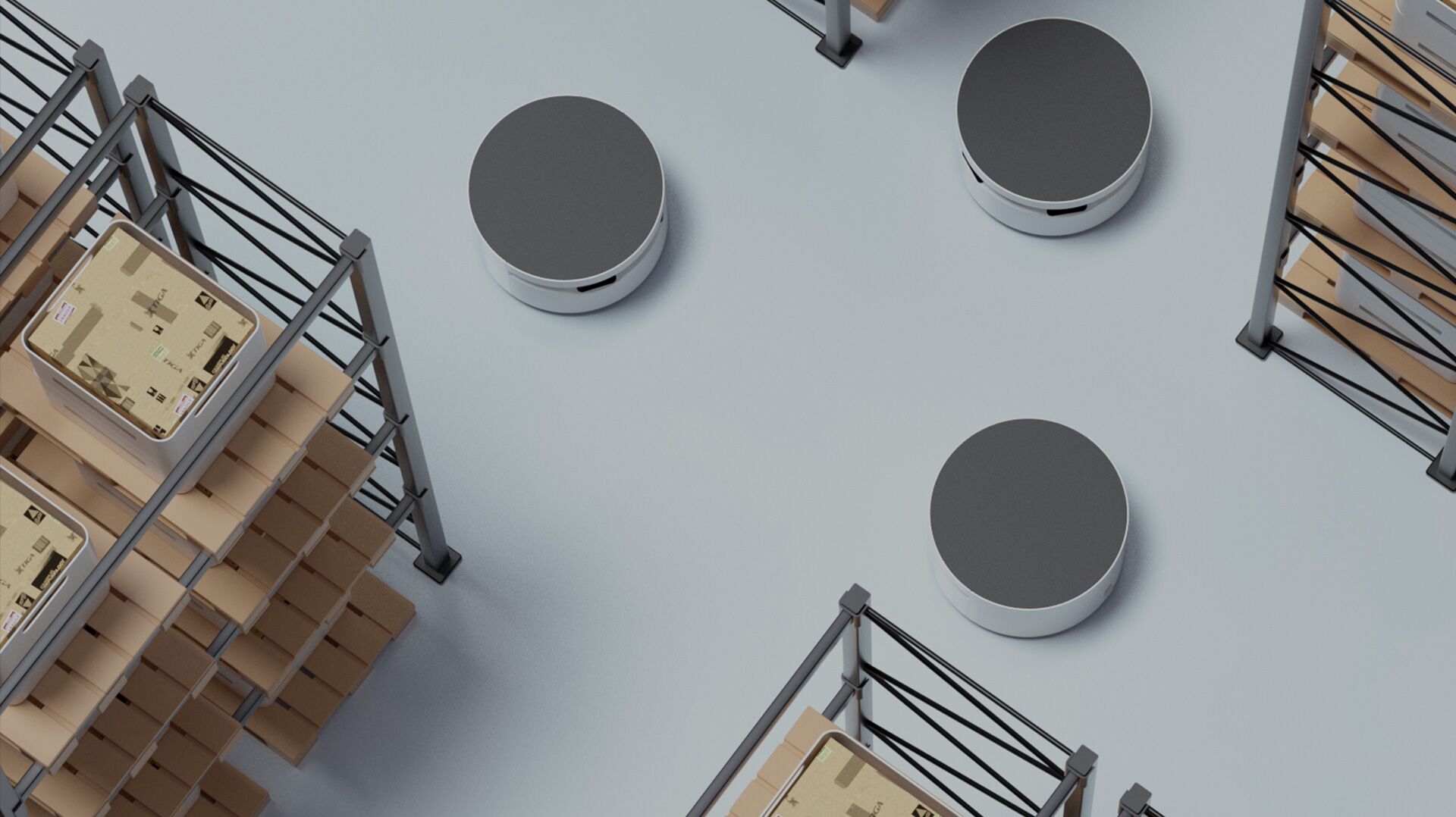

Autonomous Dispatch System
Achieve unified internal deployment of robots for efficient task distribution and fleet coordination.
The Moon Knight Robot Chassis is a commercial-grade differential drive AGV/AMR base featuring 60kg payload capacity, dual 3D camera obstacle avoidance, ROS support, and autonomous elevator integration for indoor and outdoor deployment.
The Reeman Moon Knight Robot Chassis is a highly adaptable and mature robotic mobility platform designed for a wide range of applications. With its stable, differential drive robot base and compatibility with various autonomous robot platforms, Moon Knight has been proven in numerous real-world scenarios, showcasing unmatched reliability in industrial and service robot deployments alike.
Built to support flexible configurations, Moon Knight functions seamlessly as an AGV chassis, AMR base, or outdoor robot chassis, meeting the needs of research, education, and heavy-duty environments. Its modular robot platform design allows for easy customization, making it a perfect foundation for advanced sensor integration, AI-powered navigation, and ROS compatibility.
With a robust structure and optimized for both indoor and outdoor conditions, Moon Knight's navigation-ready robot base enables smooth movement across diverse terrains. Ideal for projects that demand mature, stable performance and versatile application options, the Reeman Moon Knight is a comprehensive solution that adapts to autonomous navigation, SLAM-enabled, and open-source robot development needs.
Industry Applications
Proven performance across diverse operational environments

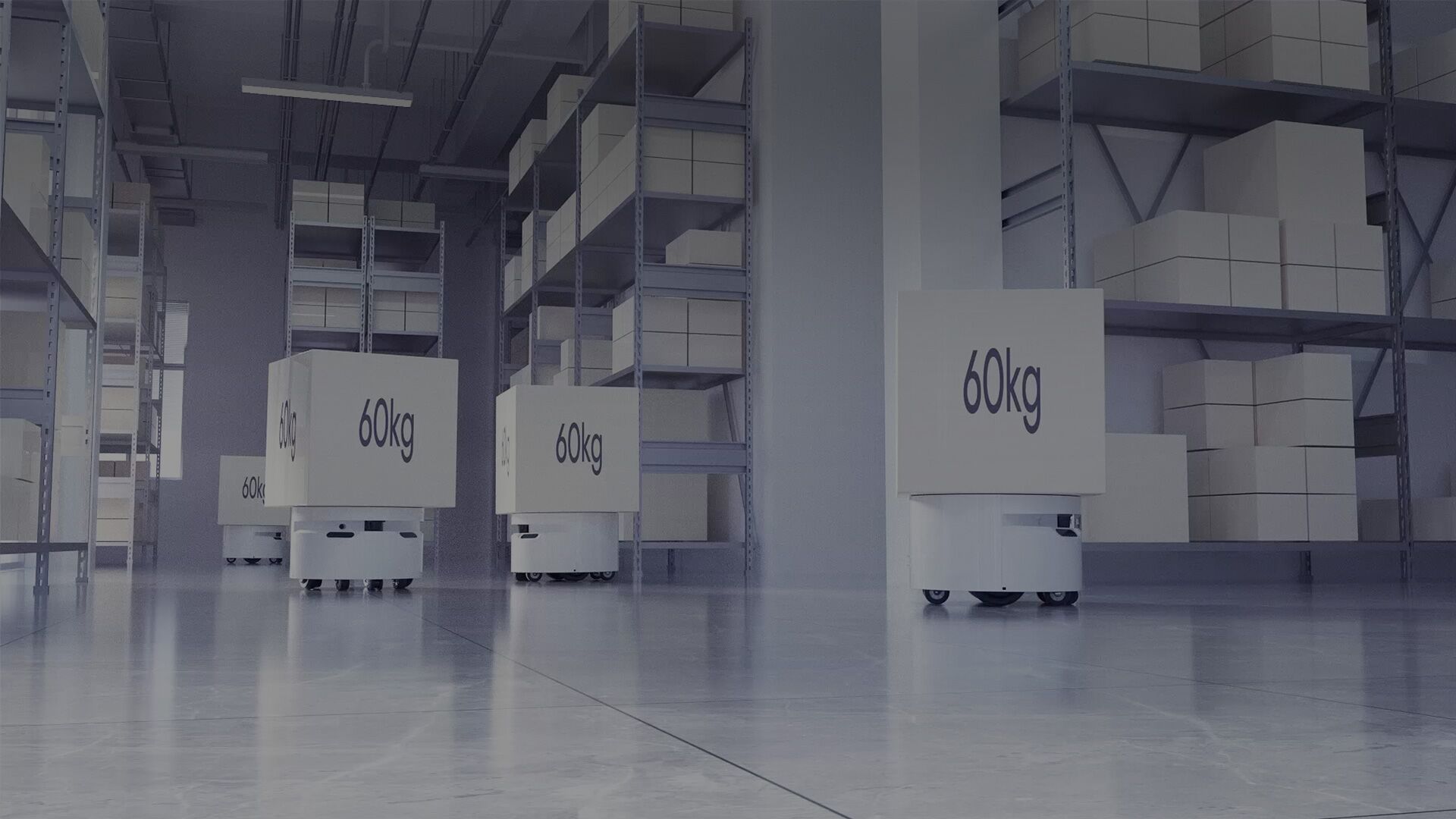

Warehouse Automation
The 60kg payload capacity enables efficient inventory transport, order picking, and material handling. Dual 3D cameras ensure safe navigation in dynamic warehouse environments with 20-hour battery life supporting full-shift operation.
Academic Research
Full ROS compatibility and open SDK enable SLAM algorithm development, autonomous navigation research, and robotics education. The modular design supports rapid prototyping and sensor integration testing.
Outdoor Security Patrols
5° climbing capability and robust differential drive system handle uneven terrain. IP-rated construction and 25m laser navigation enable reliable autonomous patrols in outdoor facilities and industrial campuses.
Related Chassis Products
Product Parameters
| Operating systems | Android 5.1 operating system and above |
| Whole machine size | 500mm (L) × 500mm (W) × 310mm (H) |
| Net weight | 34KG |
| Screen | 7 inches (resolution 1024×600) |
| Travel speed | 0.1 ~ 1.0m/s |
| Maximum load capacity | 60KG |
| Charging time | 4A (approx. 8 hours), 7A (approx. 4 hours) (with automatic recharge) |
| Robot input power | 28.4V – 7A |
| Battery parameters | Lithium iron phosphate 25.6V / 25Ah |
| Battery life | About 20 hours |
| Web-based approach | WiFi |
| Movement parameters | 25m laser navigation with autonomous obstacle avoidance; climbing: 5°; rotation radius: 0, swing radius: 254mm |
| Environmental conditions | Operating temperature: 5°C to 40°C; humidity: 5% to 85%. Storage temperature: -10°C to 50°C (at extreme temperatures, the battery needs to be charged and discharged at least once a month) |
Frequently Asked Questions
What is the maximum payload of Moon Knight Robot Chassis?
The Moon Knight Robot Chassis supports a maximum payload capacity of 60KG, making it suitable for warehouse inventory transport, delivery applications, and industrial material handling tasks.
Does Moon Knight support ROS and SLAM?
Yes, Moon Knight features full ROS (Robot Operating System) compatibility and supports SLAM (Simultaneous Localization and Mapping) algorithms. The open SDK platform provides API interfaces for customized development and integration with autonomous navigation systems.
How long does the battery last?
The Moon Knight is equipped with a 25.6V / 25Ah lithium iron phosphate battery providing approximately 20 hours of continuous operation. The battery supports automatic recharge functionality with charging times of approximately 8 hours (4A) or 4 hours (7A).
Can Moon Knight integrate with building elevator systems?
Yes, Moon Knight features autonomous elevator integration capabilities. The robot can automatically call lifts and perform delivery tasks across multiple floors, enabling seamless multi-level operation in office buildings, hotels, and industrial facilities.
What development interfaces are available for customization?
Moon Knight provides a fully open SDK platform with comprehensive API support for both hardware and software customization. The system includes rich documentation, Android 5.1+ compatibility, and supports remote navigation deployment through the cloud service platform without requiring extensive coding.
What navigation capabilities does Moon Knight offer?
Moon Knight features 25m laser navigation with autonomous obstacle avoidance using dual 3D cameras and lidar for full-area perception. The system supports 0-degree rotation radius, 5° climbing capability, and operates effectively in temperatures from 5°C to 40°C.
