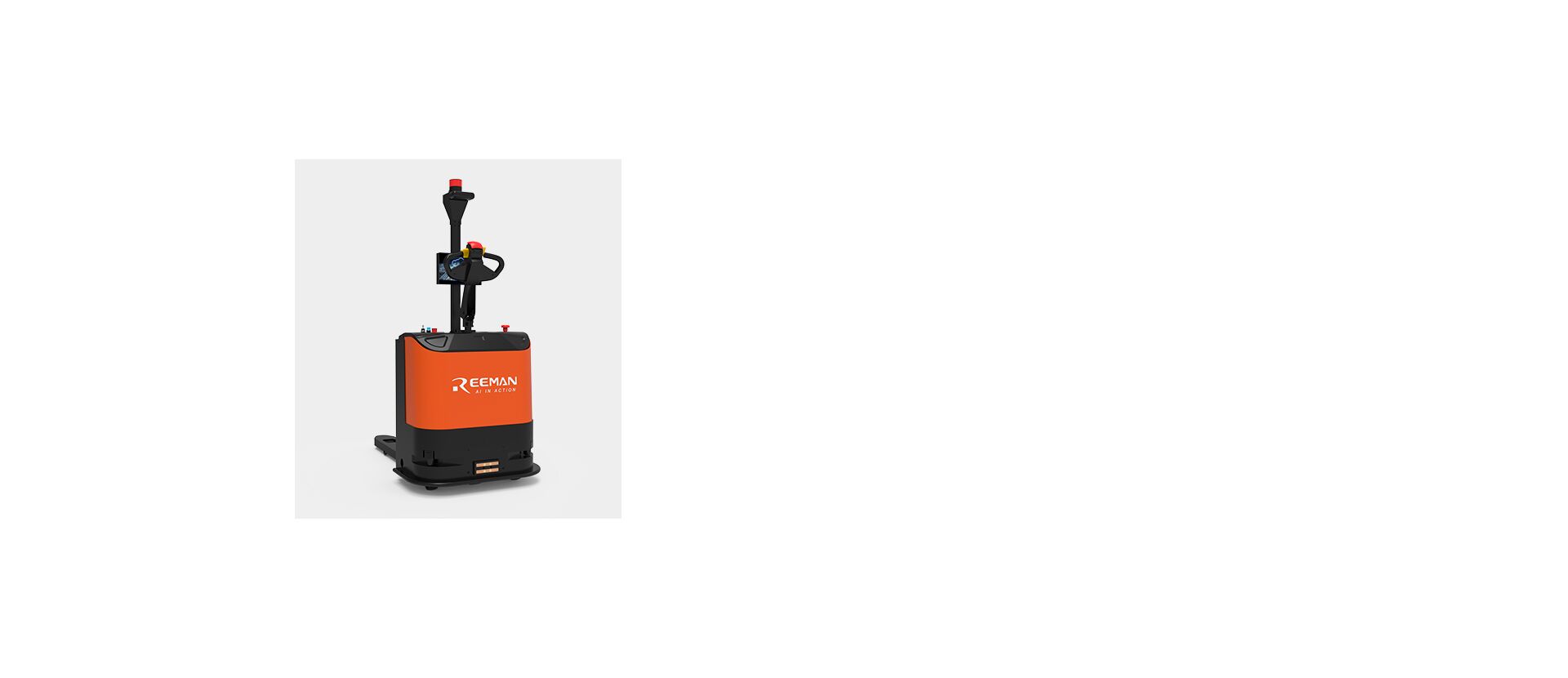

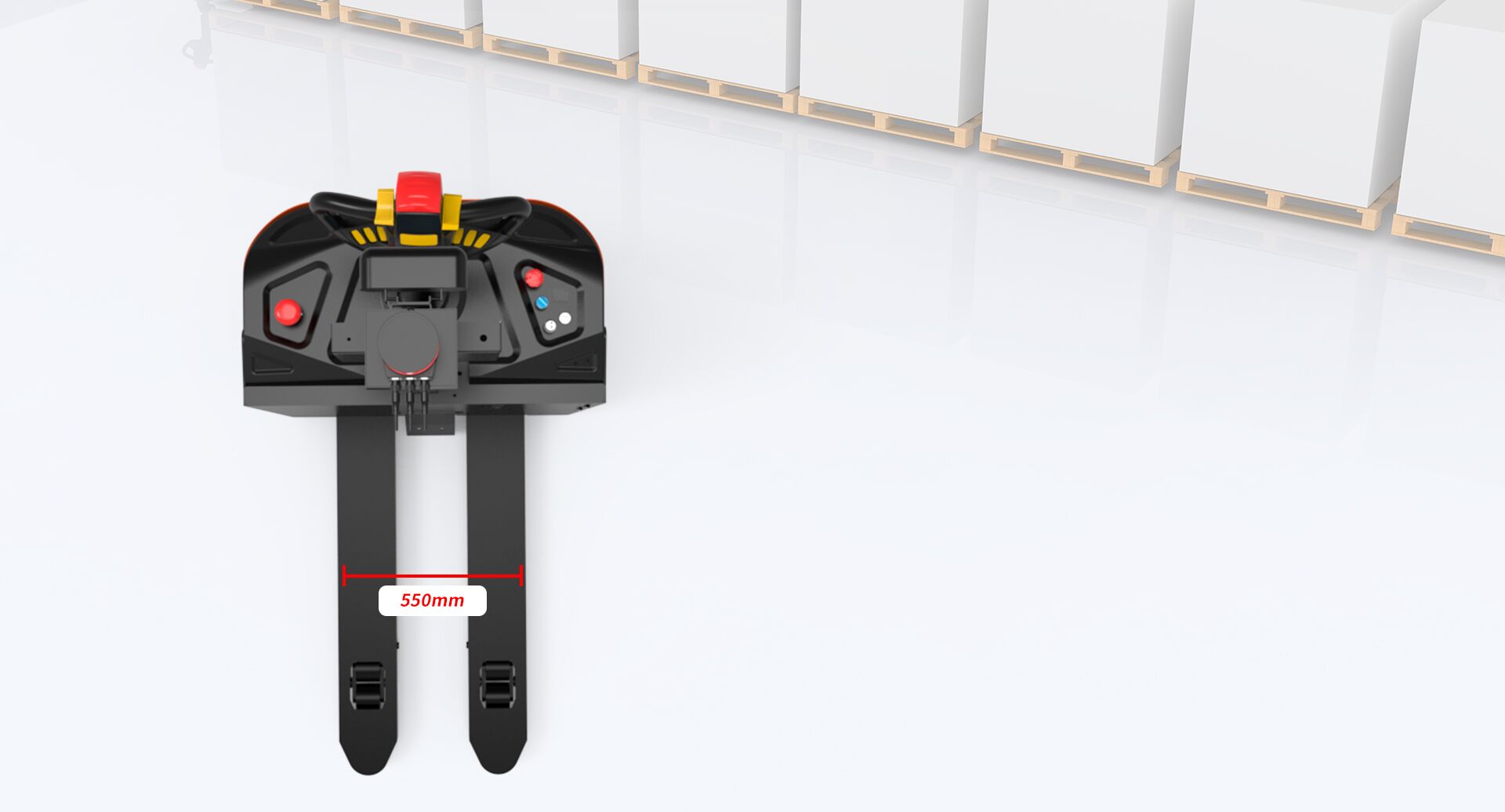

550mm Fork Arm
Accurately matches small pallets (e.g. Euro pallets) and is compatible with standard pallets from 1.2 meters with the hydraulic side shift function.
Version 3.0 Now Available

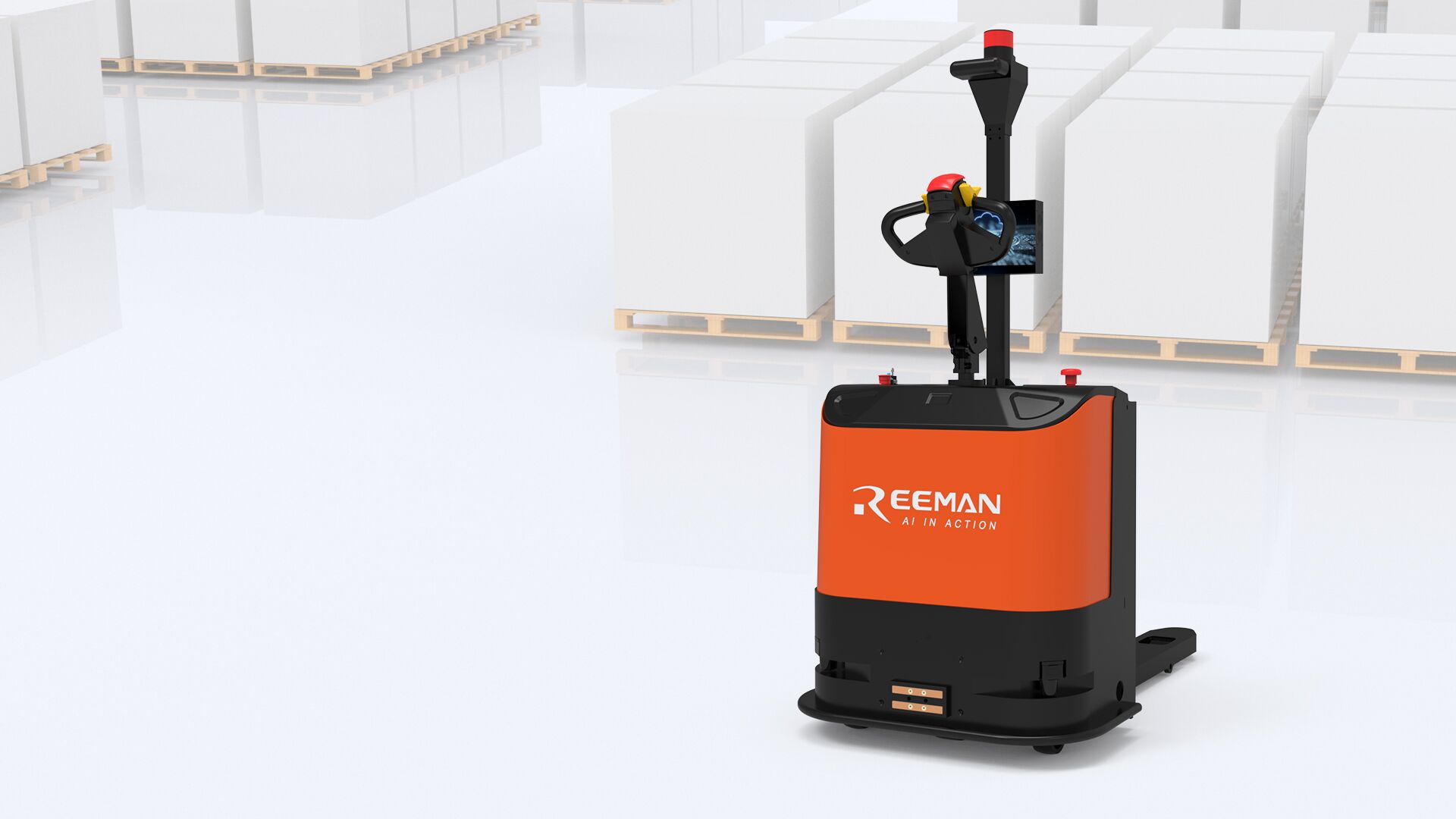

Ironhide 3.0
Autonomous Forklift
The Ironhide 3.0 is an autonomous forklift robot featuring 1.5-ton payload capacity, laser SLAM navigation, and 60m obstacle detection. Designed for warehouse automation, it maps 40,000㎡ environments without facility modifications or magnetic tape installation, operating up to 8 hours per charge with 1-hour fast charging capability.
- 1.5T Large Payload
- Laser SLAM Navigation
- Intelligent Obstacle Avoidance
- Battery Removable
- 40,000㎡ Of Navigational Mapping
- Autonomous Dispatch System
- 60m Single-line Laser Radar
Key Features
Advanced capabilities that set Ironhide 3.0 apart from traditional material handling solutions

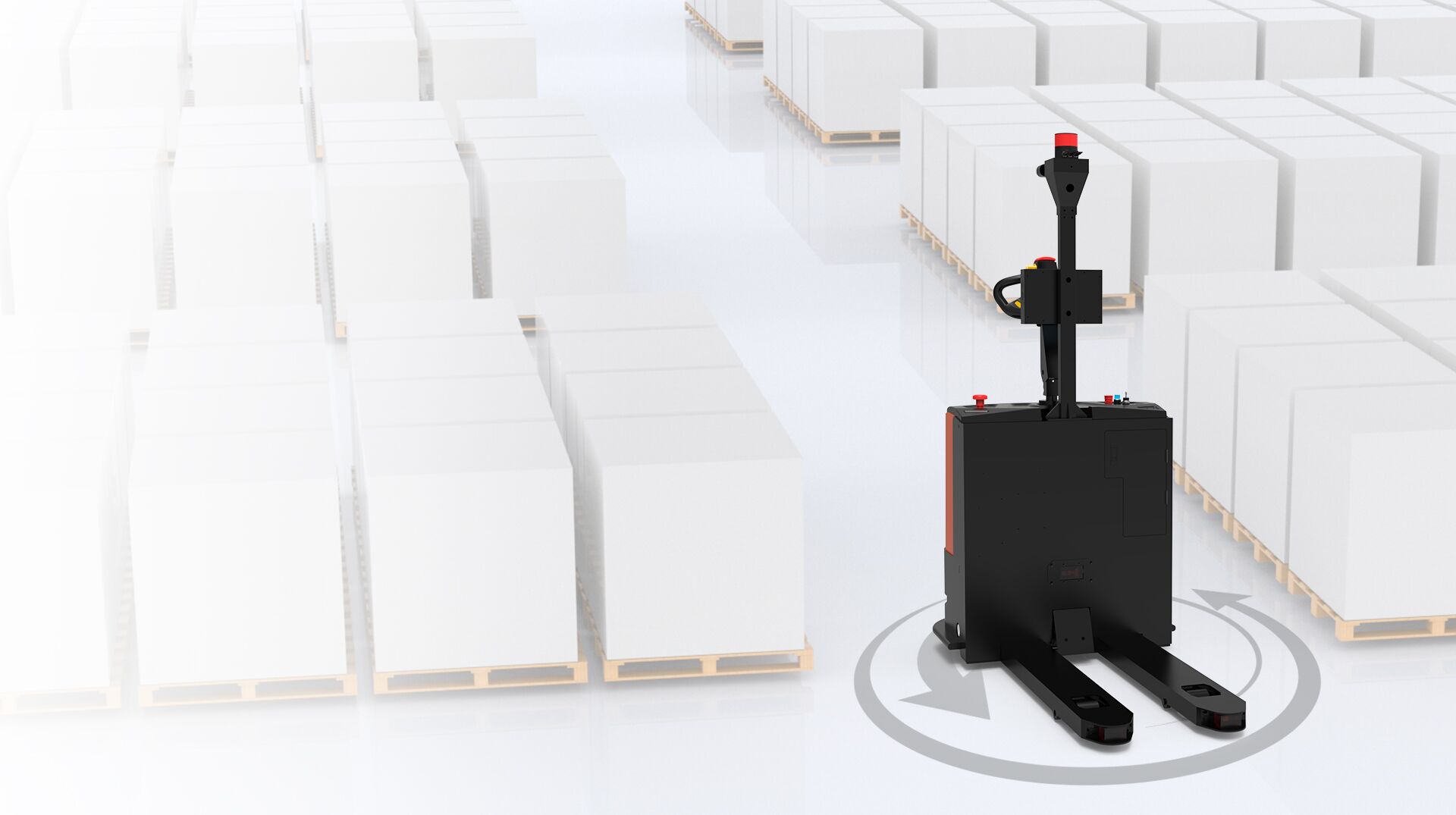

1.37m Ultra-Small Rotation Radius
Easy 360-degree steering and precise positioning without worrying about space constraints. Navigate tight aisles and confined spaces with ease.

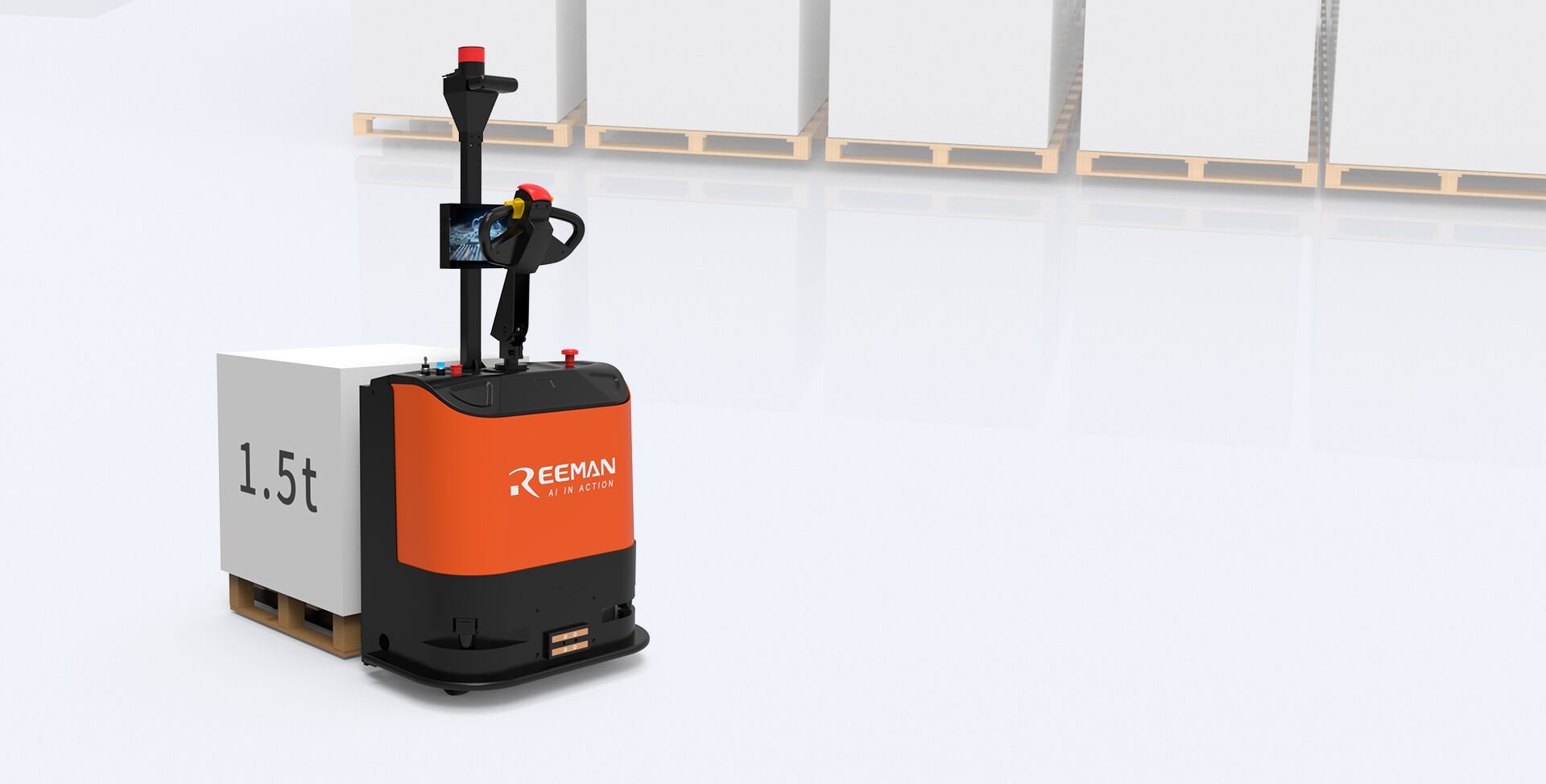

1.5T Large Payload
Large 1.5 ton capacity for most moving environments. Built for heavy-duty industrial applications with robust construction and reliable performance.
Laser SLAM Navigation
Laser navigation, no coding required. Simple and easy deployment of robotic forklifts without facility modifications or magnetic tape installation.

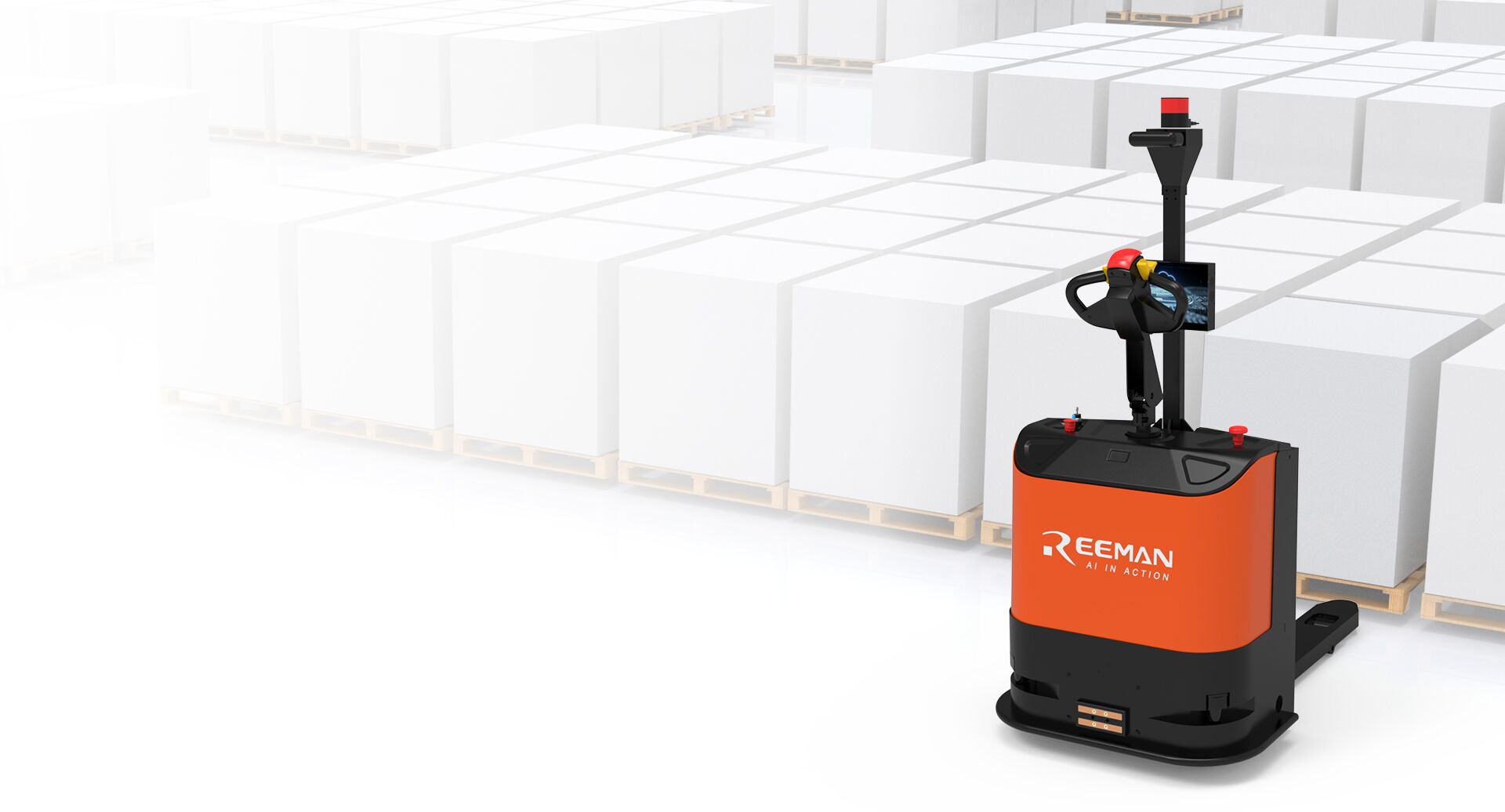

40,000㎡ Navigational Mapping
60m single line LIDAR, 1.6m narrow lane access, meets the needs of large area and complex environment usage. Map entire warehouses with precision.

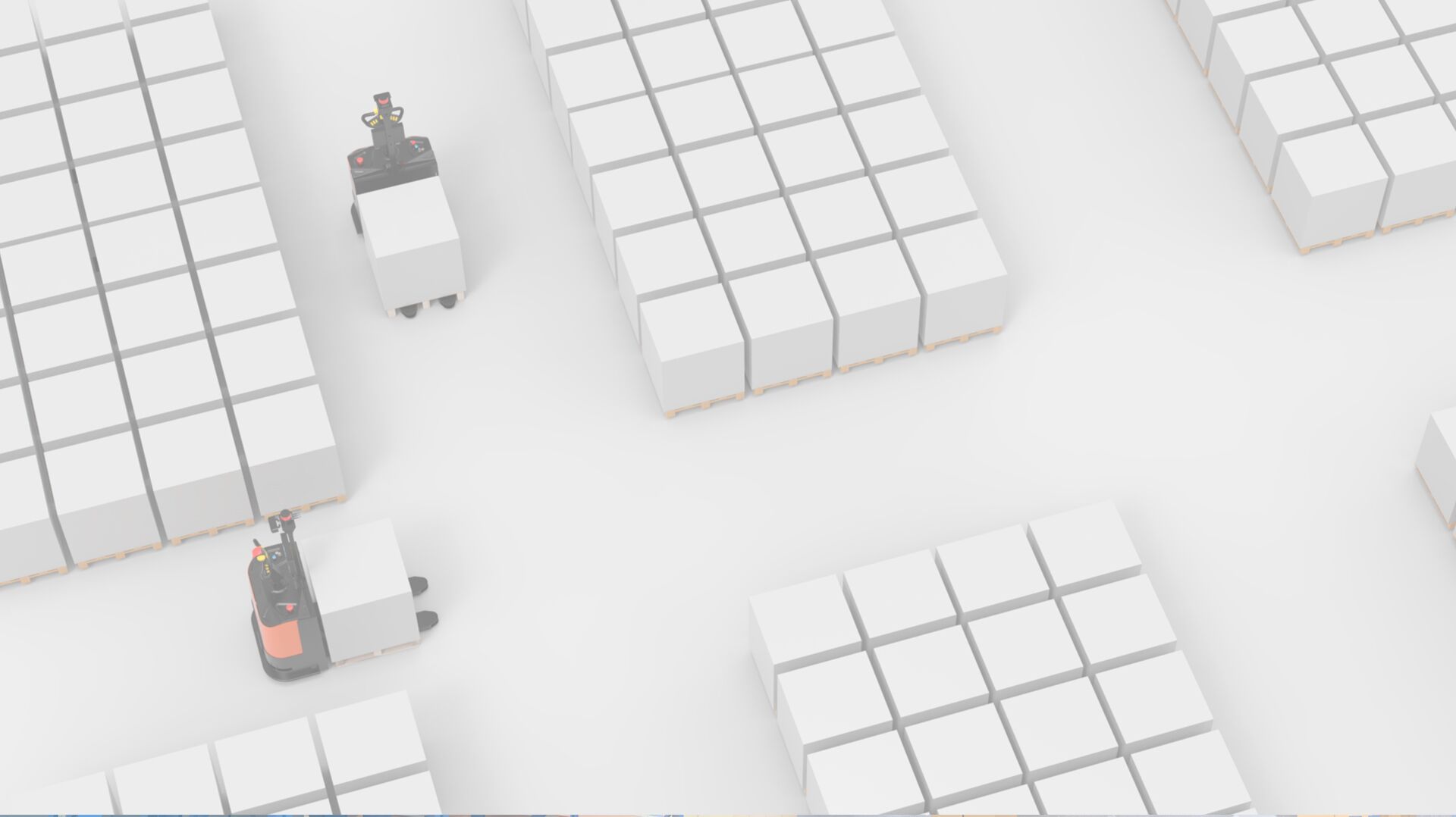

Autonomous Dispatch System
Achieve unified internal deployment of robots for efficient distribution and fleet management. Coordinate multiple units seamlessly from a central command.
Product Parameters
Complete technical specifications for the Ironhide 3.0 Autonomous Forklift
General Specifications
| Model | BBOT30F |
| Driving Method | Electronic steering & AC servo motor |
| Manual Operation Mode | Handle operation |
| Maximum Load | 1500kg |
| Vehicle Weight (including battery) | 450KG |
| Charging Time | 1H |
Dimensions
| Body Size (L×W×H) | 1350mm × 950mm × 1900mm |
| Fork Size | 1050mm × 170mm × 85mm |
| Fork Outer Width | 550mm |
| Lifting Height | 205mm |
| Minimum Fork Height | 85mm |
| Wheelbase | 1115mm |
Performance
| Turning Radius | 1365.11mm |
| Ground Clearance | 50mm |
| Travel Speed (full/no load) | 1m/s / 1.5m/s |
| Lifting Speed (full/no load) | 60mm/s / 80mm/s |
| Descent Speed (full/no load) | 70mm/s / 60mm/s |
| Aisle Width (1000×1200 pallet) | 2200mm |
Tires & Wheels
| Tire Type | Polyurethane Wheel |
| Front Wheel Size | 210mm × 70mm |
| Rear Wheel Size | 80mm × 70mm |
| Training Wheel Size | 100mm × 50mm |
| Wheel Configuration | 1/2/4 (Front/Rear/Drive) |
| Front Wheel Track | 831.97mm |
Battery & Power
| Battery Type | Lithium Iron Phosphate 48V/30AH |
| Rated Hours (no load) | 8H |
| Rated Hours (full load) | 6H |
| Charging Method | Manual power change / automatic |
| Rating | 95W |
Safety
| Safety Contact | Safe Touch Edge Design |
| Driver Ear Noise | <70dB(A) |
| Braking Method | Electronic regenerative braking |
| Obstacle Detection | 60m single-line laser radar |
