Navigation Mode
Laser SLAM navigation

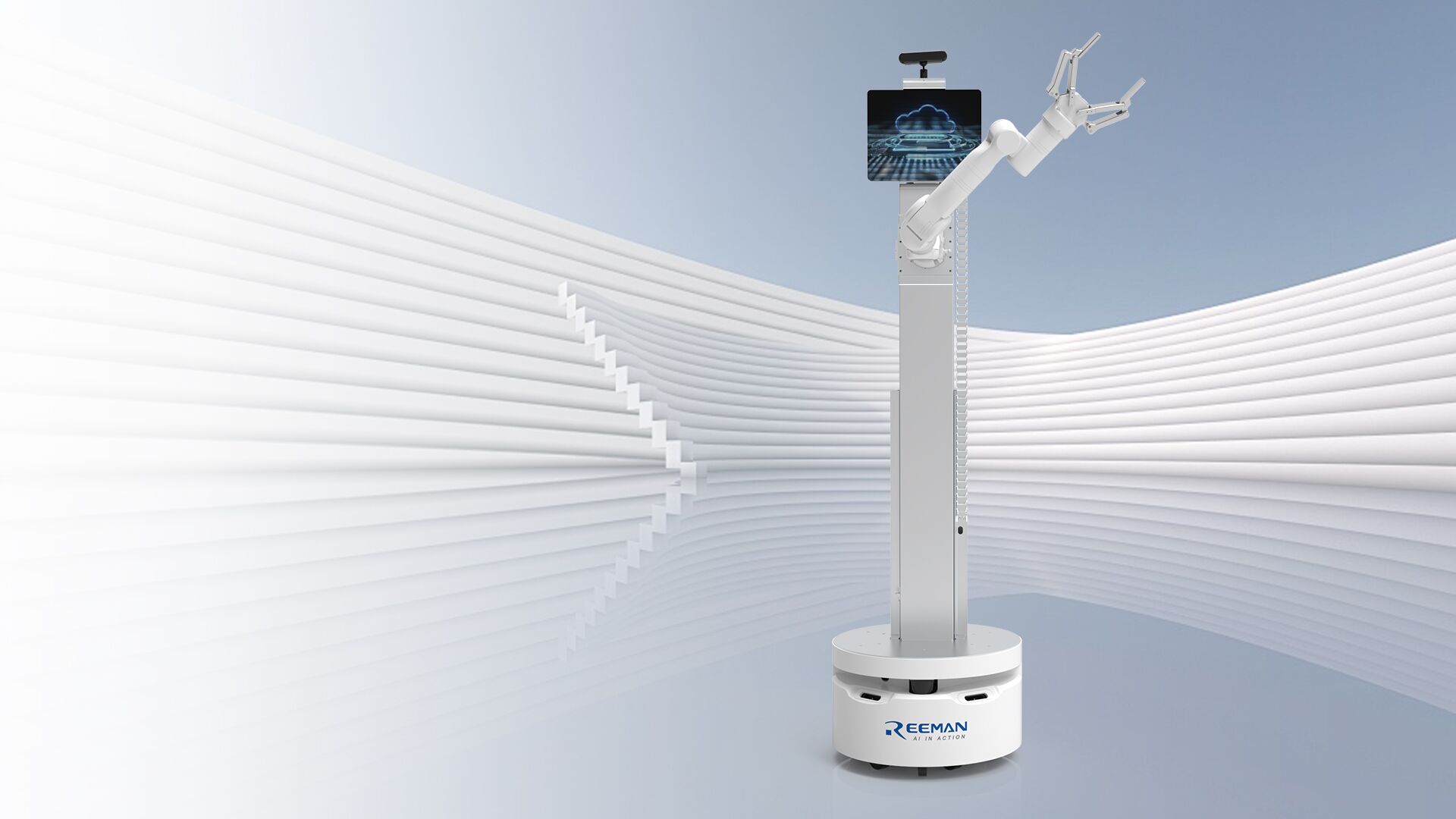

BlazeBot
Robot Arm
Ground Clearance
Can automatically lift 1.8m
Controls
Intelligent range Worry-free operation
Obstacle Avoidance
Intelligent obstacle avoidance

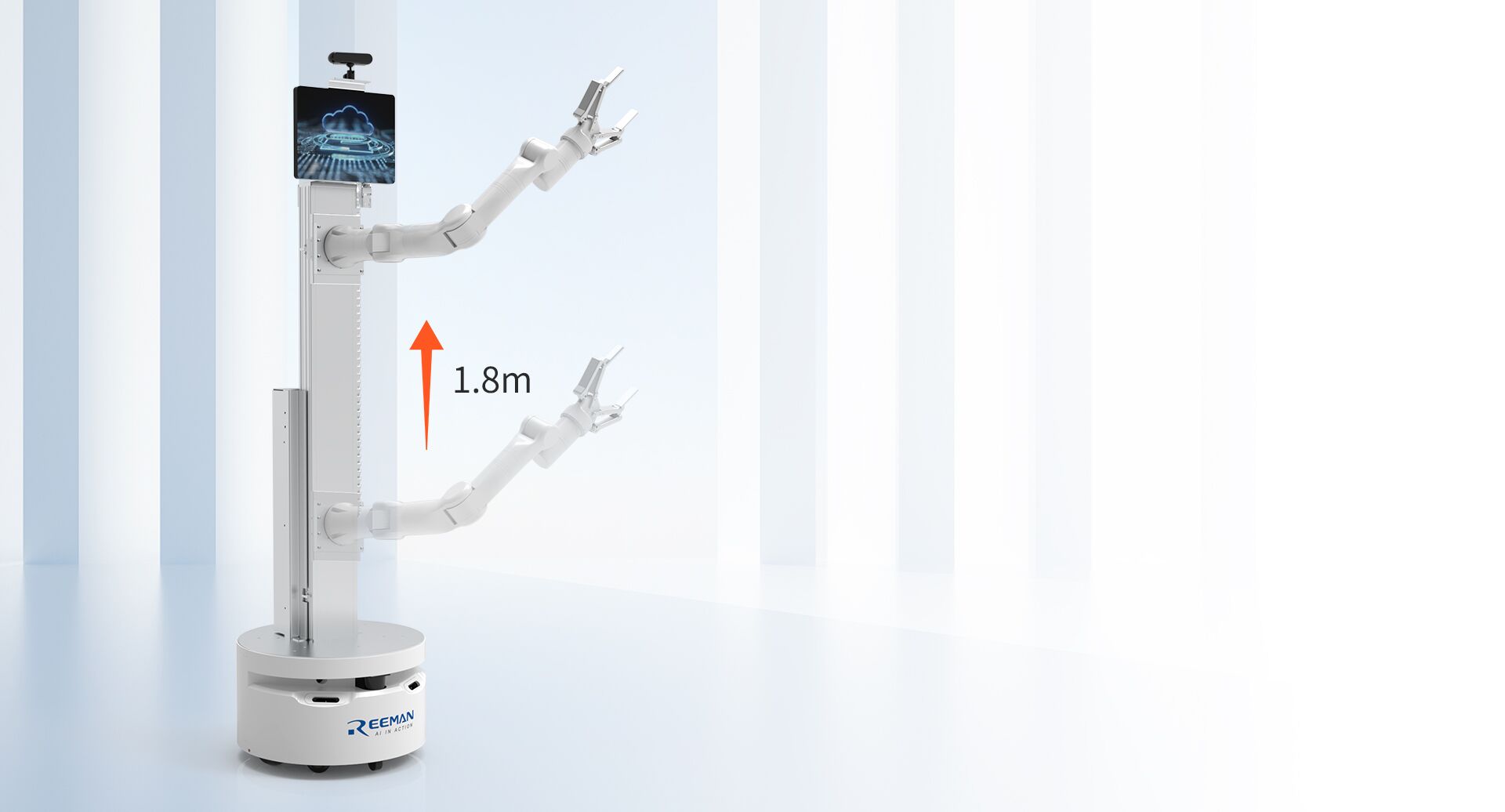

Flexibility, high and low
Can automatically lift 1.8m.

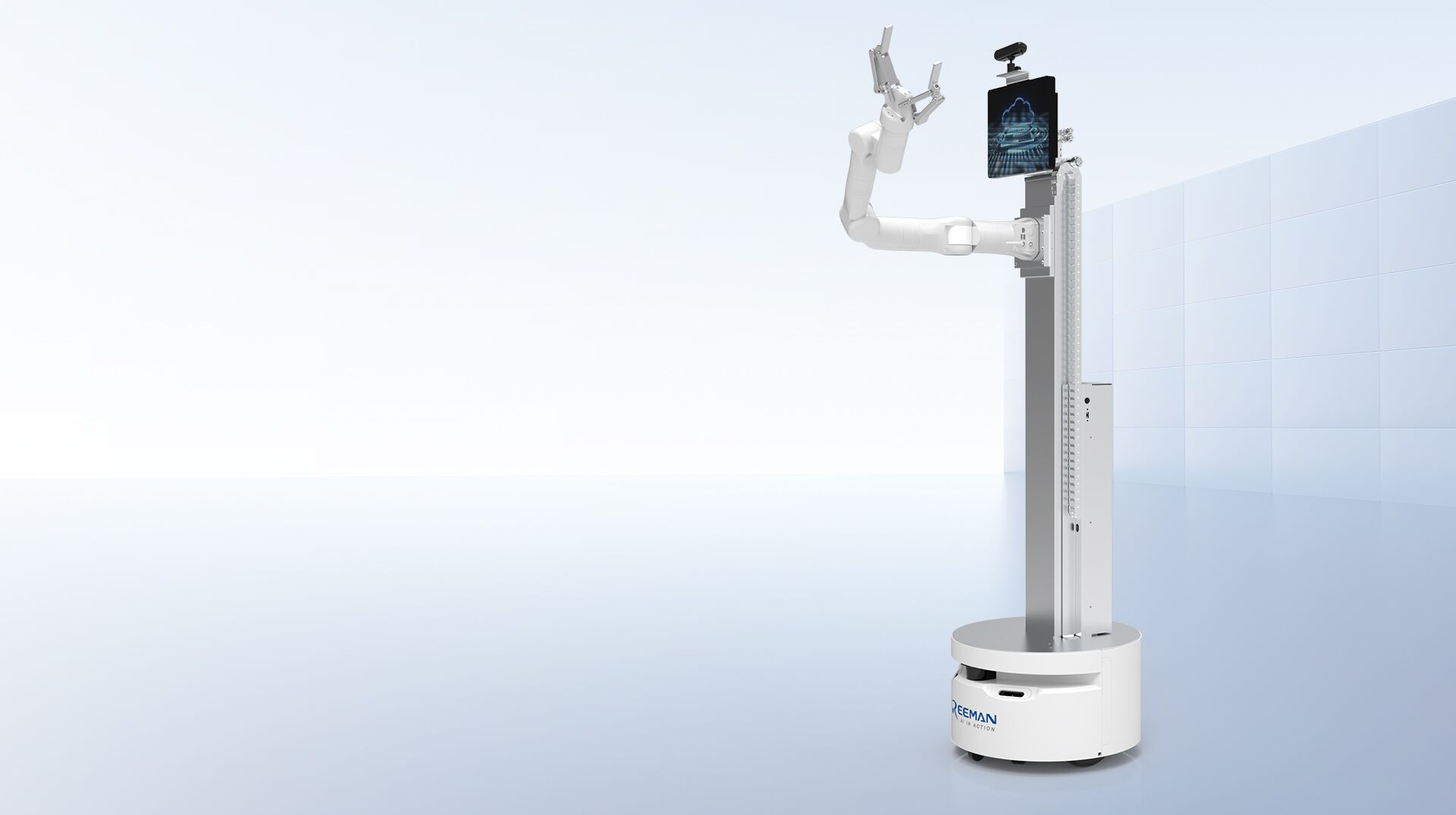

Intelligent Obstacle Avoidance
3D cameras + laser radar for active avoidance and safer operation.

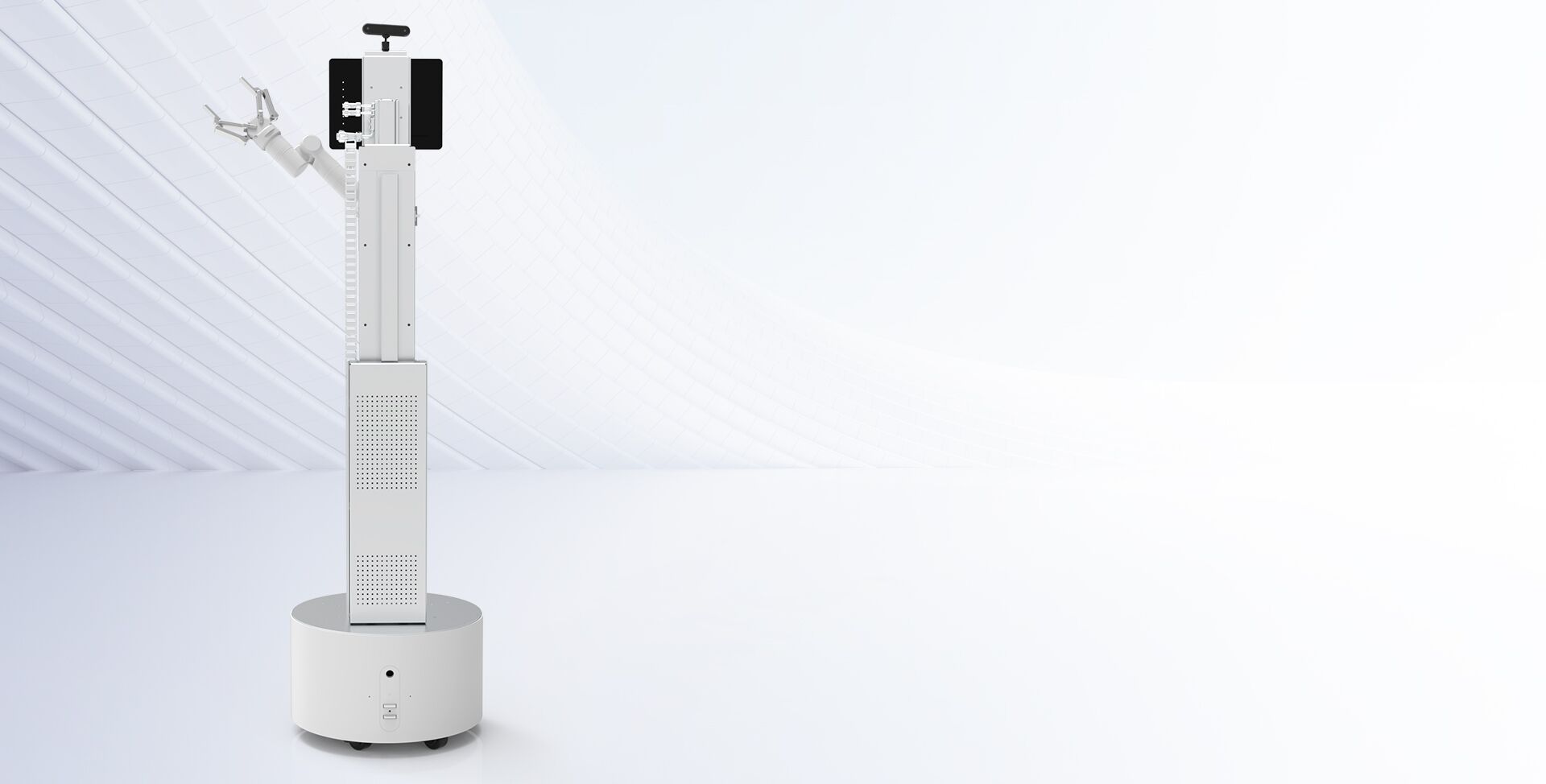

Intelligent range Worry-free operation
Low battery auto recharge.

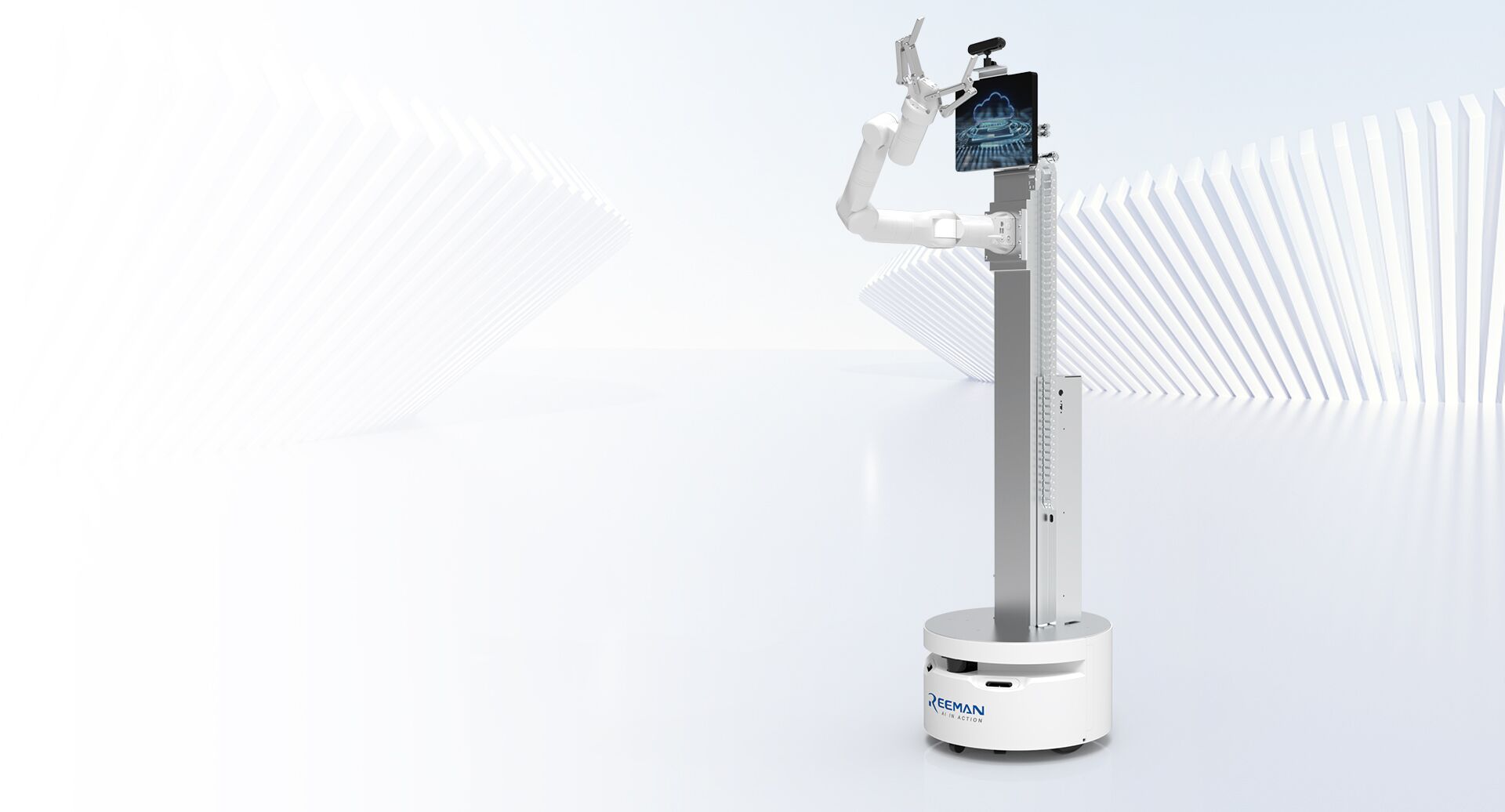

Laser SLAM Navigation
Laser navigation, no coding required, with intelligent robotic chassis.

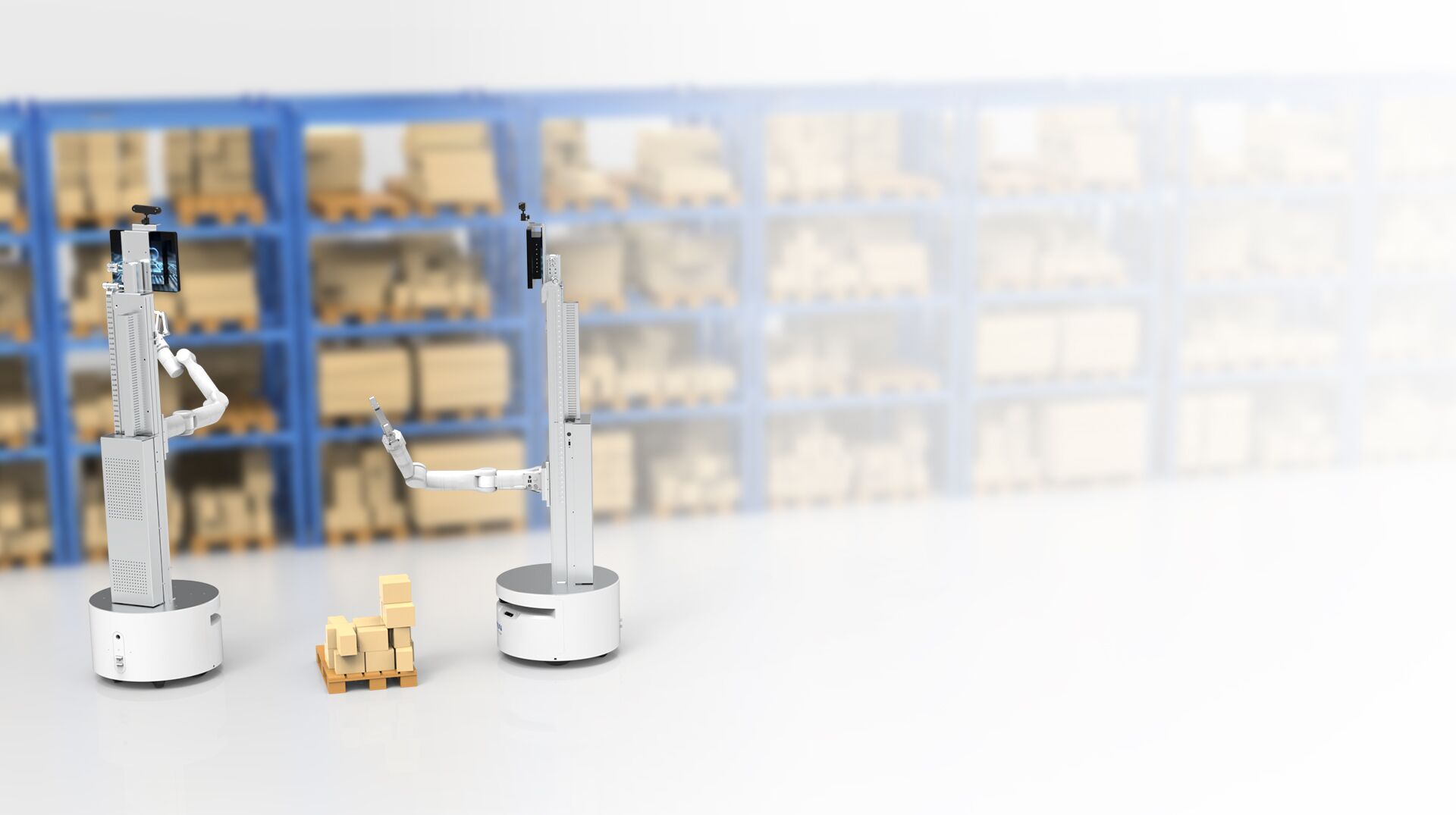

Adaptable to various environments
Flexible obstacle avoidance, can be applied to a variety of environments.

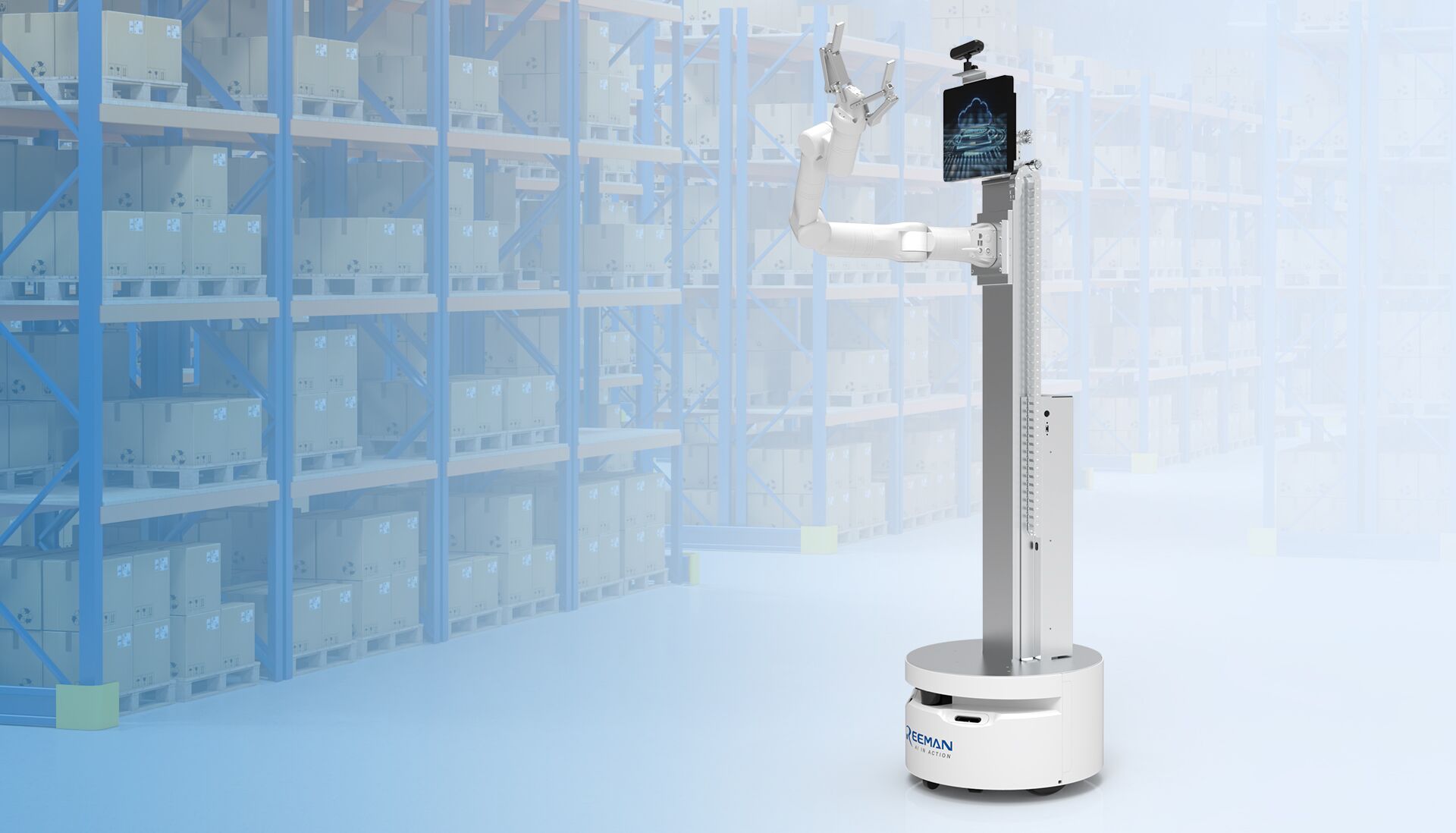

Autonomous Dispatch System
Achieve unified internal deployment of robots for efficient work.
Product Parameters
General Specifications
| Model | RML-125-1800 |
| Platform size | Total height 2430mm |
| Weights | Approx. 88kg |
| Charging Power | Single-phase three-wire ~220V±10% 50Hz |
| Operating voltage | DC24V |
| Security protection | With laser scanning obstacle avoidance, vision obstacle avoidance, force sensor, emergency stop and other functions |
| External interface | Network port, USB port, HDMI |
| Working environment | Temperature -10℃~+40℃ Relative humidity ≤85%(25℃) Altitude <4000m |
| Effective lifting distance | Lithium iron phosphate 38.4V/25Ah |
| Lifting Speed | 150mm/s |
Master Module
| GPU | 384 – core NVIDIA Volta™ GPU with 48 Tensor Cores |
| CPU | 6 – core NVIDIA Carmel ARMv8.2 64 – bit CPU |
| Internal storage | 6MB L2 + 4MB L3 8 GB 128 – bit LPDDR4x 59.7GB/s |
| Operating system | Ubuntu 18.04 |
| Number of network ports | 1 |
| Number of USB3.0 ports | 4 |
| Number of USB2.0 ports | 1 |
| Other interfaces | GPIOs, I2C, I2S, SPI, UART |
| Sizes | 90mm×103mm×35mm |
Product Overview
BlazeBot Robot Arm is a 6-axis articulated robotic arm engineered for precision industrial automation and manufacturing applications. Designed by Reeman Robotics, this ISO 9283 compliant robotic arm delivers exceptional accuracy and reliability for modern production environments. With its advanced servo motor control system and intuitive programming interface, BlazeBot enables businesses to automate complex tasks including precision assembly, material handling, and quality control operations. The arm's compact footprint combined with its extended reach makes it ideal for deployment in space-constrained factory floors while maintaining industrial-grade performance standards required for 24/7 manufacturing operations. Explore our full robotics catalog to see how BlazeBot fits into your automation strategy.
Technical Specifications
BlazeBot robotic arm delivers precision manufacturing capabilities with ISO 9283 compliant performance metrics. The system combines robust mechanical engineering with advanced electrical systems to deliver reliable industrial automation.
Mechanical Specs
- Payload capacity: 2kg
- Reach: 600mm
- Repeatability: ±0.05mm
- Degrees of freedom: 6-axis articulation
- Weight: Approx. 88kg
- Lifting speed: 150mm/s
- Effective lifting distance: 1.8m
- Platform size: Total height 2430mm
Electrical Requirements
- Operating voltage: DC24V
- Battery: Lithium iron phosphate 38.4V/25Ah
- Charging power: Single-phase three-wire ~220V±10% 50Hz
- Master module GPU: 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
- CPU: 6-core NVIDIA Carmel ARMv8.2 64-bit CPU
- Internal storage: 8 GB 128-bit LPDDR4x 59.7GB/s
- Operating system: Ubuntu 18.04
Industrial Use Cases
BlazeBot industrial automation solutions are deployed across diverse manufacturing sectors, delivering precision manufacturing capabilities that enhance productivity and quality control.
Automotive Assembly
In automotive manufacturing environments, BlazeBot excels at precision component placement, gasket installation, and small parts assembly. The robotic arm's ±0.05mm repeatability ensures consistent quality in high-volume production lines.
Electronics Manufacturing
Electronics production demands the highest levels of precision manufacturing. BlazeBot performs delicate PCB assembly, component placement, and quality inspection tasks with consistent accuracy and safe operation alongside human technicians.
Key Features
BlazeBot combines advanced robotics technology with practical industrial design to deliver a complete automation solution:
Servo motor precision: High-resolution encoders deliver ±0.05mm repeatability
Programmable controls: Open SDK and Ubuntu-based operating system
Laser SLAM navigation: Autonomous navigation without facility modifications
3D camera obstacle avoidance: Real-time environmental sensing
Auto recharge capability: Automatic return to charging station
Force sensing: Integrated force sensors for delicate handling
Emergency stop systems: Multiple safety layers including laser scanning
Frequently Asked Questions
What is BlazeBot Robot Arm?
BlazeBot is a 6-axis articulated robotic arm designed for precision industrial automation and manufacturing applications. It features ISO 9283 compliant accuracy, servo motor precision control, and intelligent navigation systems for safe operation in factory environments.
What is the payload capacity?
BlazeBot supports payloads up to 2kg with full 6-axis articulation. The 600mm reach and ±0.05mm repeatability make it ideal for precision assembly tasks, electronics manufacturing, and quality control applications requiring consistent accuracy.
Which industries use BlazeBot?
BlazeBot is deployed across multiple industries including:
- Automotive (component assembly and quality control)
- Electronics (PCB assembly and precision placement)
- Pharmaceuticals (packaging and inspection)
- General Manufacturing (material handling and automation)
