The Mini 2.0 (Model MBOT20F) is a compact autonomous forklift truck (AGV) manufactured by Reeman Robotics for narrow aisle warehouse operations. Featuring laser SLAM navigation technology and a 1000kg payload capacity, this robotic forklift operates in aisles as narrow as 1.1 meters without requiring magnetic tape or QR code infrastructure modifications.
The Mini 2.0 autonomous forklift excels in high-density warehouse environments where space optimization is critical. Its 1.1-meter aisle capability allows warehouses to increase storage capacity by up to 30% compared to traditional forklifts requiring 3-meter aisles. The AGV performs continuous pallet transport, put-away operations, and cross-docking tasks without fatigue, maintaining consistent throughput during peak seasons and overnight shifts.
Retail distribution centers benefit from the Mini 2.0's compact footprint when handling diverse SKU profiles in limited backroom spaces. The robotic forklift seamlessly integrates with existing conveyor systems and automated storage retrieval systems (AS/RS), enabling just-in-time replenishment for store deliveries. Its precise 3D camera vision ensures damage-free handling of fragile retail goods while maintaining the velocity required for same-day fulfillment operations.
In manufacturing facilities, the Mini 2.0 AGV serves as a flexible work-in-process (WIP) transport solution between production lines and storage areas. Its zero-infrastructure deployment means manufacturers can reconfigure production layouts without reinstalling magnetic tape or RFID tags. The autonomous forklift operates safely alongside human workers in mixed-traffic environments, delivering raw materials to assembly stations and removing finished goods to shipping docks with millisecond-level obstacle avoidance.
The Mini 2.0 autonomous forklift integrates seamlessly with your existing warehouse management infrastructure through standard communication protocols. Reeman Robotics provides an open SDK and RESTful APIs that enable bidirectional data exchange with leading WMS platforms including SAP EWM, Oracle WMS, Manhattan Associates, and Blue Yonder.
The warehouse fleet management software coordinates multiple Mini 2.0 units through a centralized dispatch system, optimizing task allocation based on real-time traffic conditions, battery levels, and priority rules. The AGV supports multiple communication interfaces including Wi-Fi 6, 4G LTE, and industrial Ethernet, ensuring reliable connectivity in complex RF environments.
Our engineers conduct facility survey and create initial SLAM map using the Mini 2.0's onboard LiDAR.
Define pickup/dropoff points, set speed zones, and validate obstacle avoidance parameters.
Connect to your warehouse system, train operators, and begin production operations with full support.

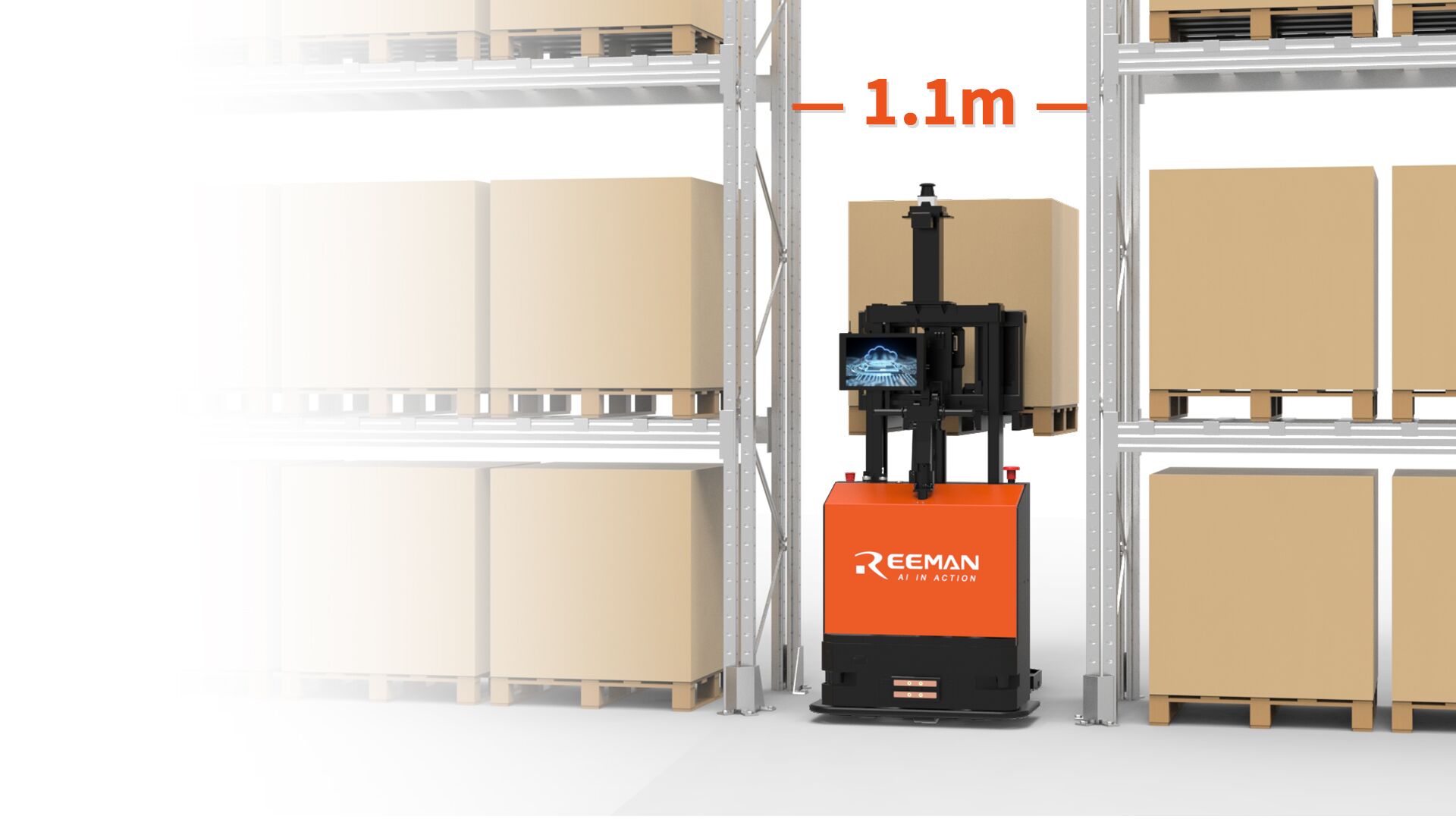

New option for 1.1-meter narrow lanes. The Mini 2.0 is engineered to operate in space-constrained environments, maximizing your storage density without compromising on performance.
1m lifting height, 1000KG load capacity. Despite its compact footprint, the Mini 2.0 delivers industrial-grade lifting power for heavy-duty material handling operations.
3D cameras + laser radar for active avoidance and safer operation. Advanced sensor fusion technology ensures precise handling of cardboard boxes and irregular loads with maximum safety.
Laser SLAM navigation, no coding required simple and easy deployment of robotic forklifts. Automatic charging capability with portable charging posts ensures 24/7 operational readiness.
60m single line LiDAR, 1.6m narrow lane access, meets the needs of large area and complex environment usage. Zero infrastructure required with autonomous laser SLAM navigation.
Achieve unified internal deployment of robots for efficient distribution. Fleet management system coordinates multiple units for optimized workflow and intelligent task allocation.
Last updated: 2026-07-17
| Mode | MBOT20F |
| Driving method | Electronic steering & AC servo motor |
| Operation type | Walking & Automatic |
| Maximum load | 1000kg |
| Load center distance | 600mm |
| Vehicle weight (including battery) | 240kg |
| Body size | 1610×775×1920 mm |
| Fork size | 1000×160×60 mm |
| Fork outer width | 560mm |
| Fork lifting height | 1000mm |
| Minimum fork height | 84mm |
| Max height of gantry during operation | 1450mm |
| Travel speed, full/no load | 5.4 km/h |
| Lifting speed, full/no load | 100 mm/s |
| Descent speed, full/no load | 50 mm/s |
| Safety contact | Front End Safety Crash Thixotropy |
| Service brake | Electronic brake |
| Drive motor power ×2 | 1 kW |
| Steering Motor Power | 0.4 kW |
| Battery voltage | 48V |
| Battery weight | 26×4 kg |
| Driver ear noise | <70 dB(A) |
| Charging method | Automatic / Manual Direct |
| Ground clearance at center | 40 mm |
| Turning radius | 1302 mm |
| Tire type (front/rear/additional) | Polyurethane Wheel |
| Tire size, front | 165×39.5 mm |
| Tire size, rear | 80×70 mm |
| Tire size, additional wheels | 75×40 mm |
| Number of wheels (F/R/A) | 2/4/2 |
| Balancing wheels | 1029 mm |
| Load-bearing wheelbase | 493 mm |
| Min aisle width (800×1200) | 1450 mm |
| Min aisle width (800×750) | 1100 mm |
Reeman Robotics, specializing in autonomous mobile robots and AGV solutions since 2014, provides industrial automation equipment certified to CE and ISO 9001 standards. With 200+ patents and a dedicated team of 100 engineers, we deliver cutting-edge automation technology to businesses worldwide. Our comprehensive product portfolio includes autonomous forklifts, AMR delivery robots, and intelligent fleet management systems designed to work right out of the box. We serve 10,000+ enterprises globally with 24/7 technical support and are committed to sustainable automation using eco-friendly lithium iron phosphate batteries.
Experience the power of autonomous material handling. Request a free trial and see how Mini 2.0 can optimize your narrow aisle operations.
