Super high input-output ratio
Low investment, high returns. Cost reduction and efficiency boost with quick ROI and long-term gains.
AMR Platform
Fly Boat Robot Chassis
High-load autonomous mobile robot platform with 300kg capacity, 10cm autonomous lifting, and open Android SDK for custom development.

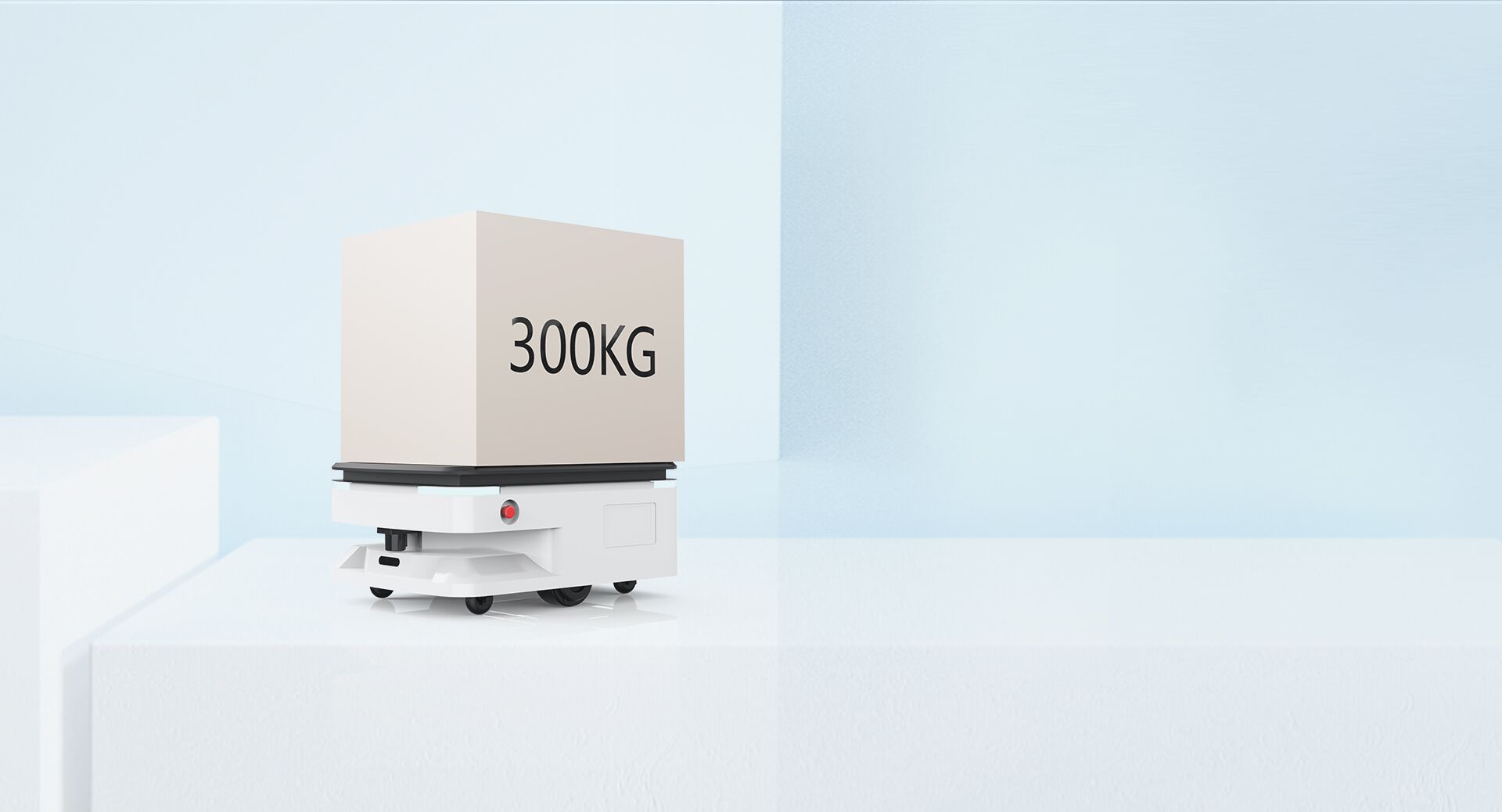

300kg
Max Payload
±10cm
Nav Accuracy
8h
Full-Load Battery
Open
Android SDK
Core Capabilities
Built for Industrial Automation
The Fly Boat chassis combines heavy-duty performance with intelligent autonomy, delivering a ready-to-deploy foundation for your robotics applications.
SDK Access
Fully open hardware and software with API support and rich documentation to aid rapid development.
Reduced Development Costs
Stable navigation and proven platform architecture deliver shorter R&D cycles and lower development costs.
Autonomous Obstacle Avoidance
Dual 3D cameras and LiDAR enable full-area environmental perception and real-time obstacle avoidance.
Cloud Service Platform
Supports remote navigation, real-time data monitoring, and quick map deployment through an intuitive interface.
Customised Development
Highly scalable architecture allowing tailored application development to fit specific operational needs.
Development
Advanced SDK Capabilities
Provide API interface to support customised development of robotic products. The open Android SDK enables deep integration with your existing systems and rapid deployment of custom autonomous behaviors.

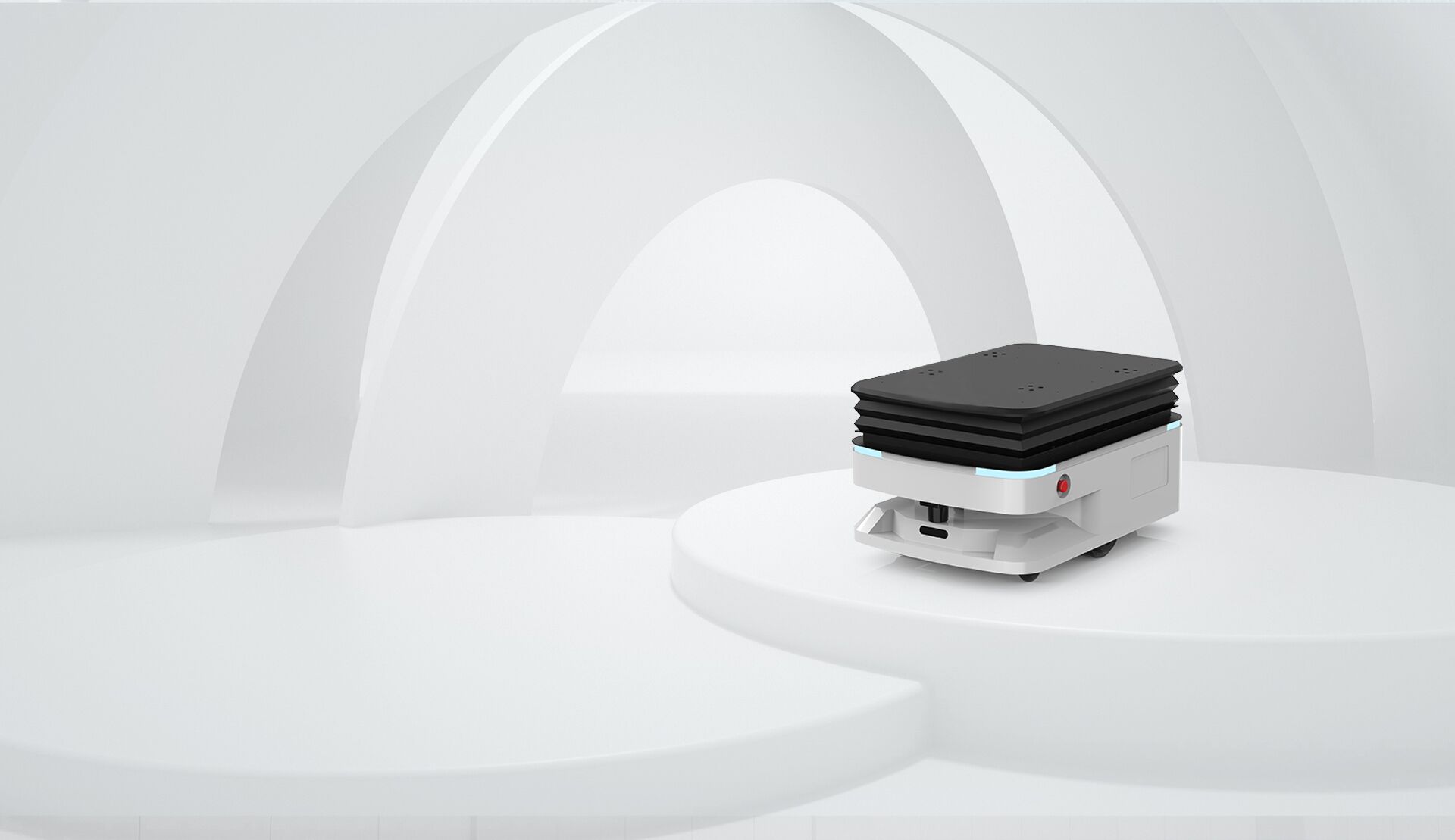

Lifting
10cm Jacking Height
Autonomous lifting enables the shelf to be raised up to 10cm, completing independent handling of goods without manual intervention.
Safety

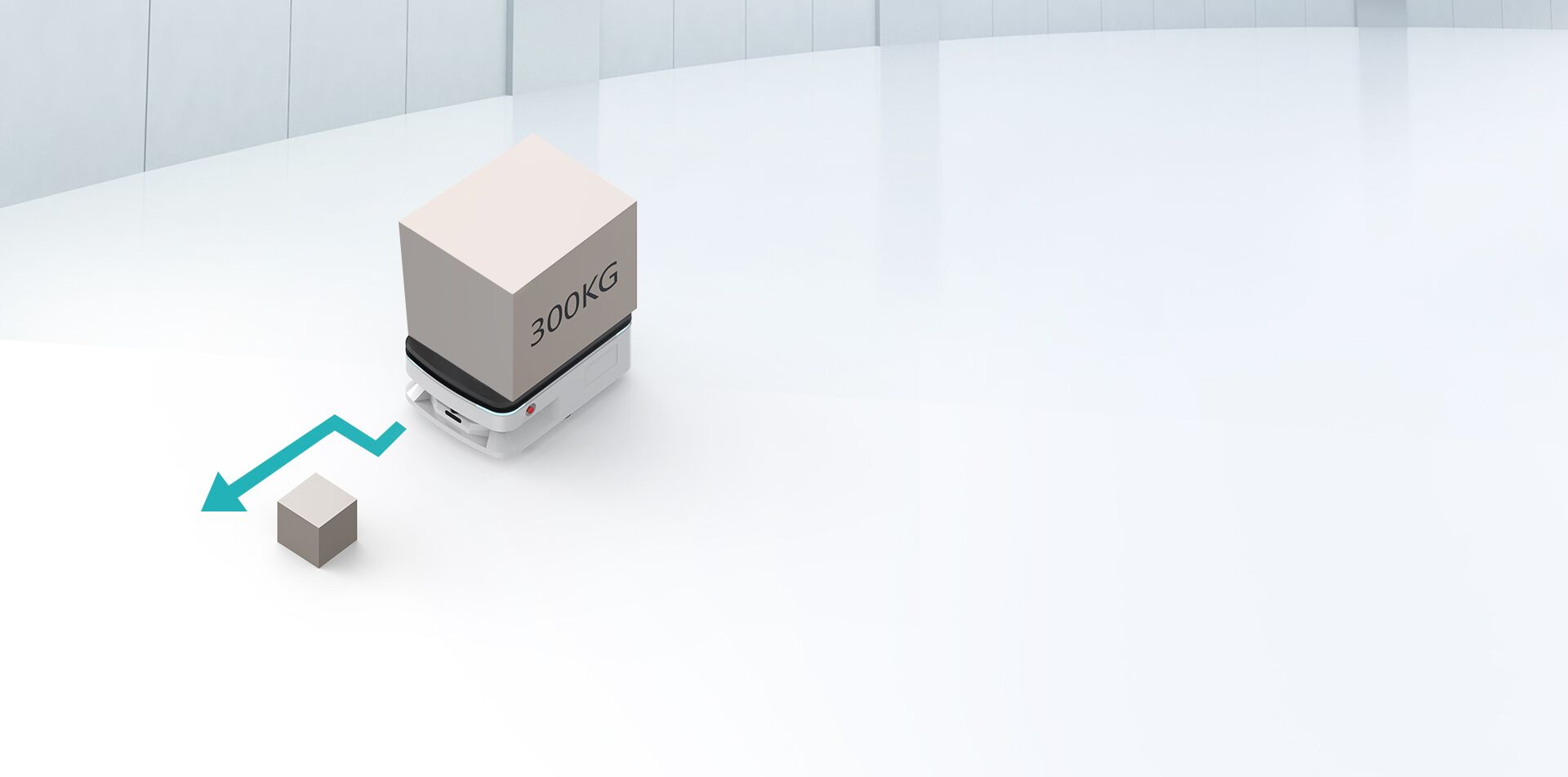

Intelligent Obstacle Avoidance
Dual 3D cameras combined with laser radar enable active avoidance and safer operation in dynamic industrial environments.

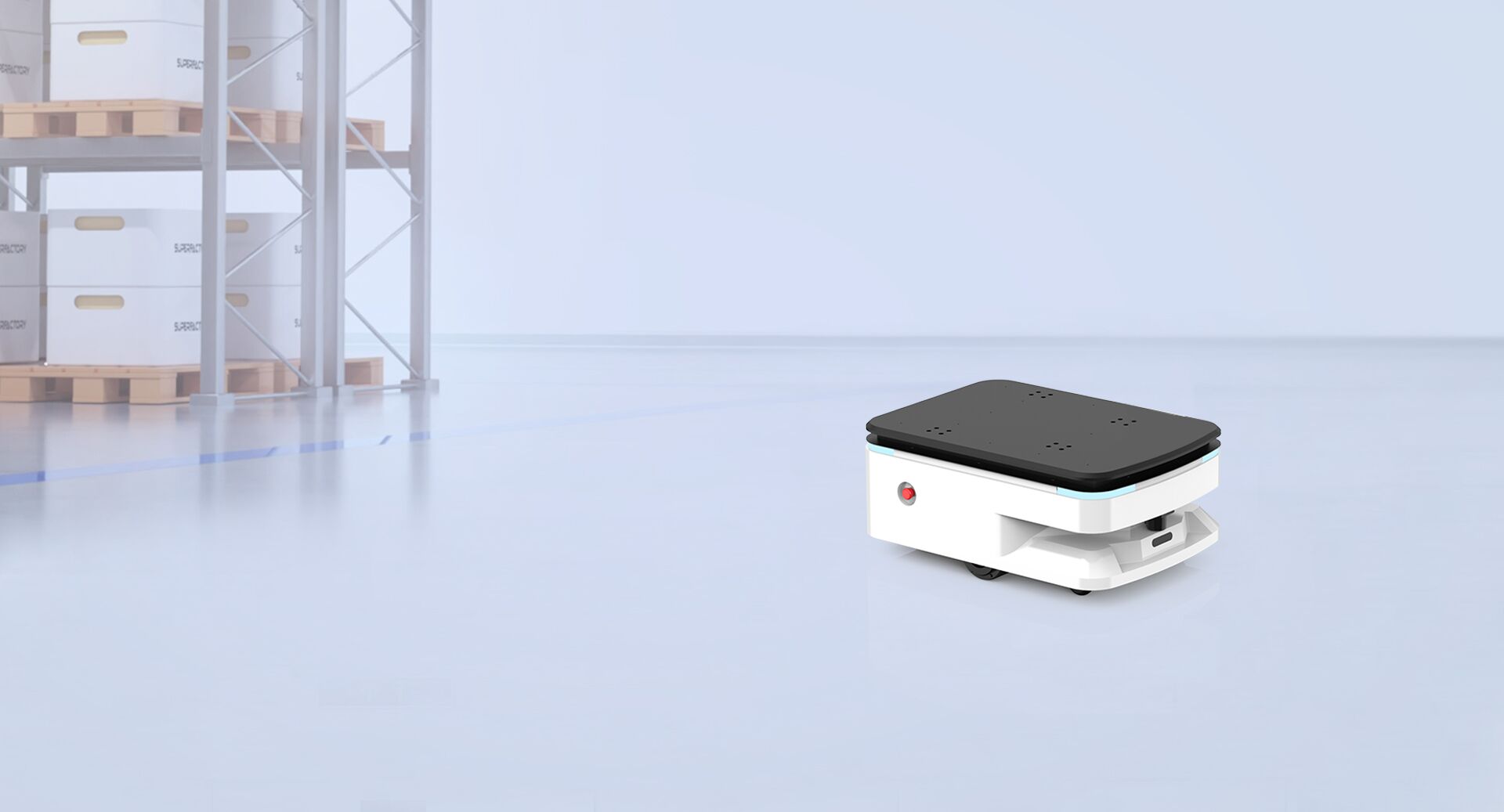

Connectivity
Remote One-button Call
Support APP, smartwatch, call button and other devices. Remotely call the robot with one key, anytime and anywhere you need it.

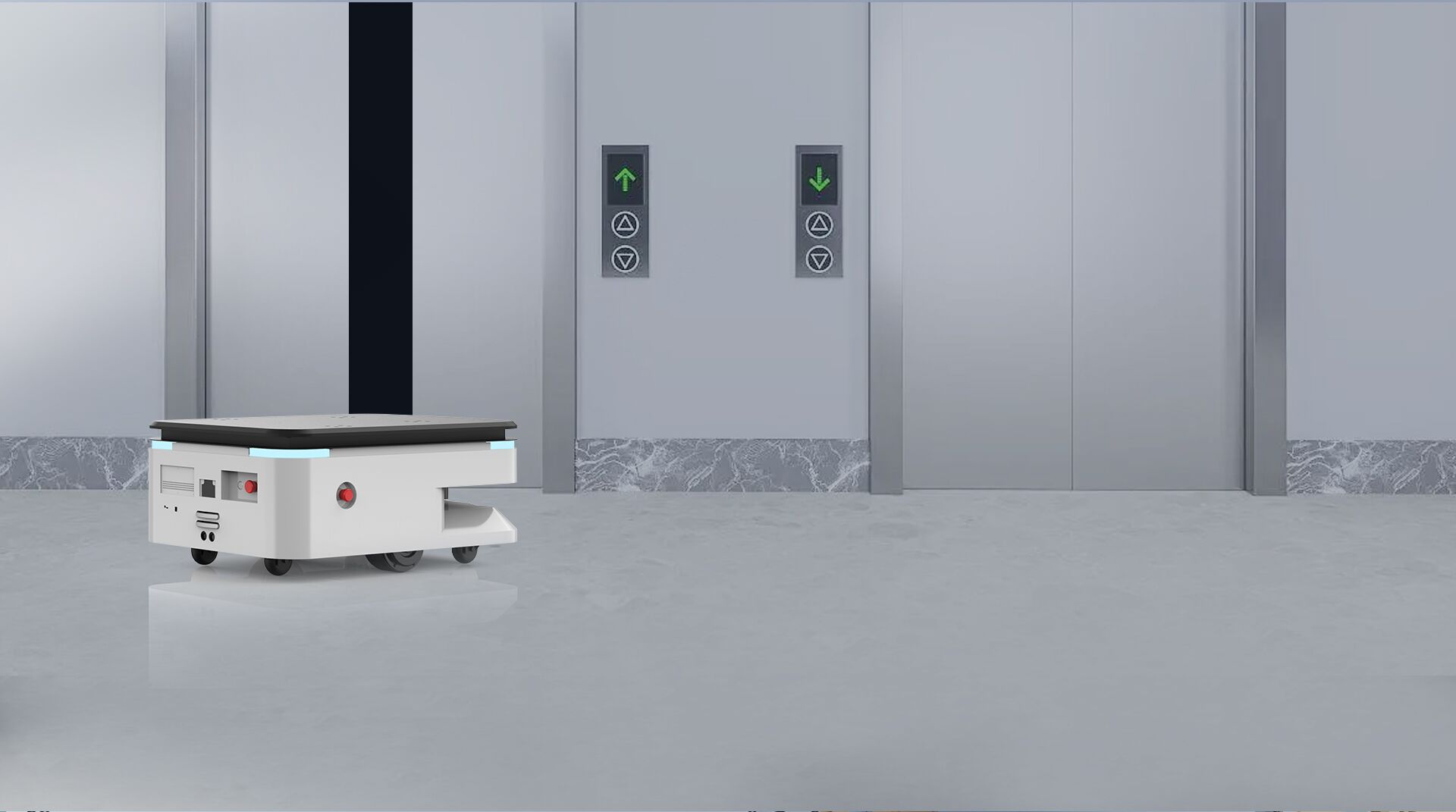

Multi-floor
Autonomous Up and Down Lifts
Automatically call lifts to perform delivery tasks across floors, enabling seamless multi-level warehouse automation.

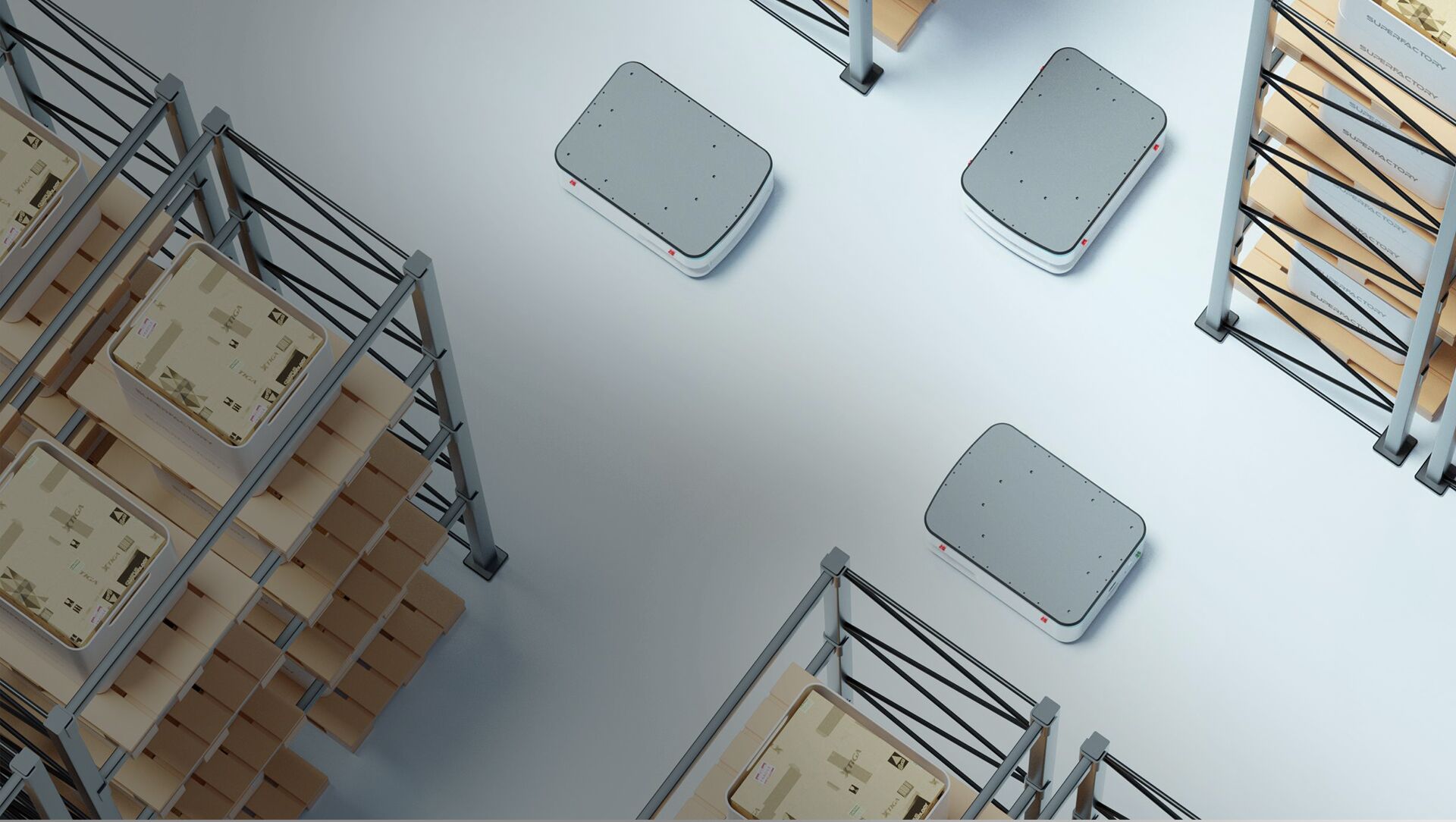

Fleet
Autonomous Dispatch System
Achieve unified internal deployment of robots for efficient distribution across large-scale operations.
Product Overview
A Versatile Foundation for Mobile Robotics

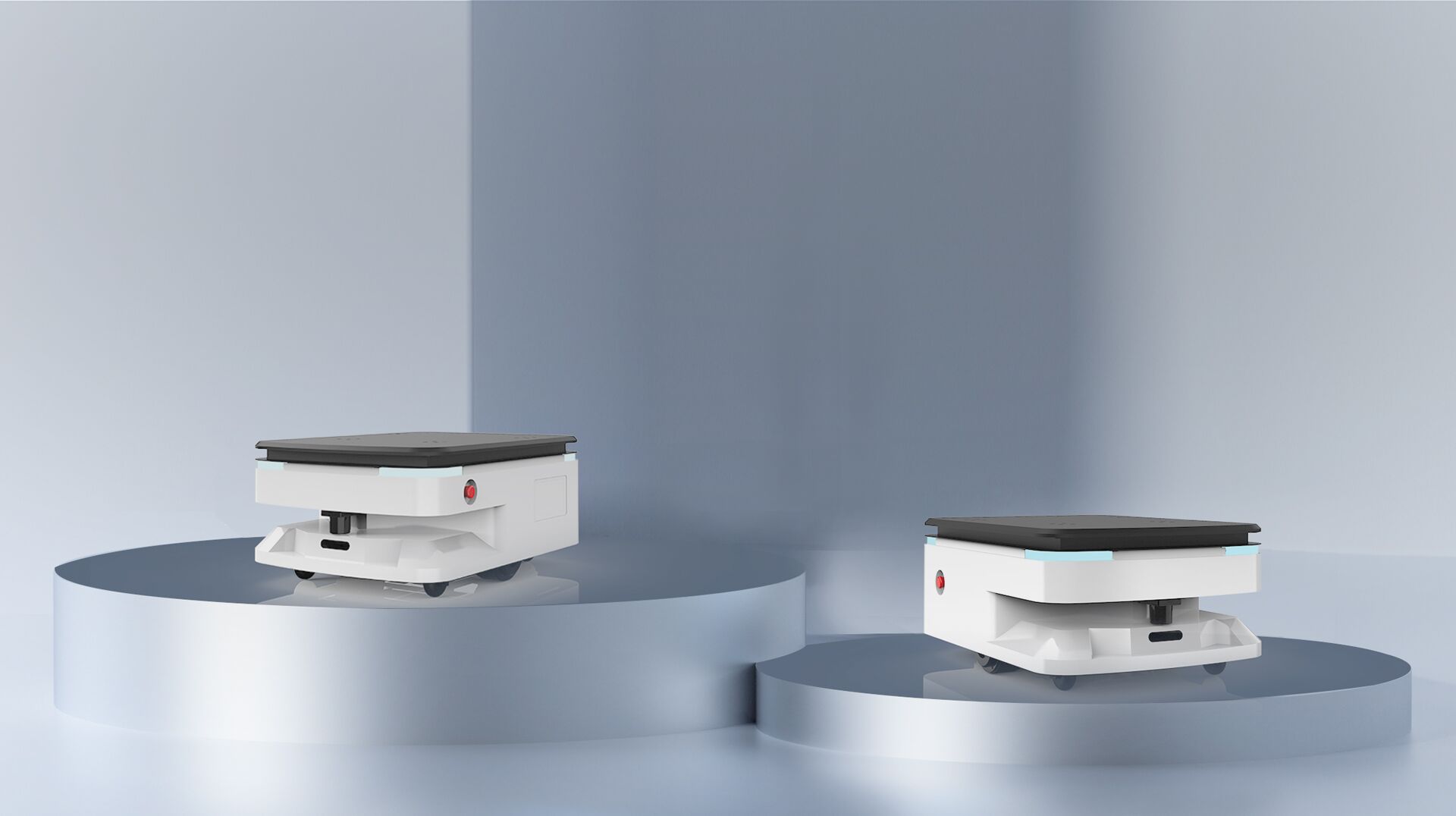

The Reeman Fly Boat Robot Chassis is an autonomous mobile robot (AMR) platform designed for high-load industrial applications, featuring a 300kg payload capacity, 10cm autonomous jacking height, dual 3D camera obstacle avoidance, and an open Android SDK for custom development. It operates up to 8 hours under full load with ±10cm navigation accuracy, making it ideal for warehouse logistics and factory automation.
Reeman Fly Boat robot chassis is a robot platform specifically designed for multifunctional and high-load applications, making it an ideal automation foundation for factories, warehouses, and research fields due to its outstanding performance and flexible design. Combining a powerful power system, precise motion control, and exceptional adaptability, Fly Boat helps developers quickly build efficient and stable robotic systems.
Fly Boat is equipped with an efficient electric drive system, offering stable power output and precise motion control capabilities to tackle complex environmental challenges. Its unique chassis design allows the robot to operate smoothly on various surfaces, particularly in narrow and complex spaces such as factory workshops and warehouse logistics corridors.
The modular design of Fly Boat provides great expansibility, allowing developers to easily integrate different sensors, LiDAR, cameras, and other intelligent devices according to their needs, meeting the automation demands of various tasks. Whether it's transporting goods in a warehouse, conducting automated inspections in a factory, or carrying out experimental tasks in research, Fly Boat can offer flexible solutions.
Additionally, Fly Boat robot chassis provides an open SDK, supporting secondary development. Developers can customize based on their specific needs to quickly implement functions like autonomous navigation, path planning, and environment perception, providing strong support for various intelligent robotic applications.
With its high cost-effectiveness and versatility, Fly Boat becomes the ideal choice for automation equipment in factories, warehouses, and research projects, significantly boosting team R&D efficiency and achieving technological breakthroughs swiftly.

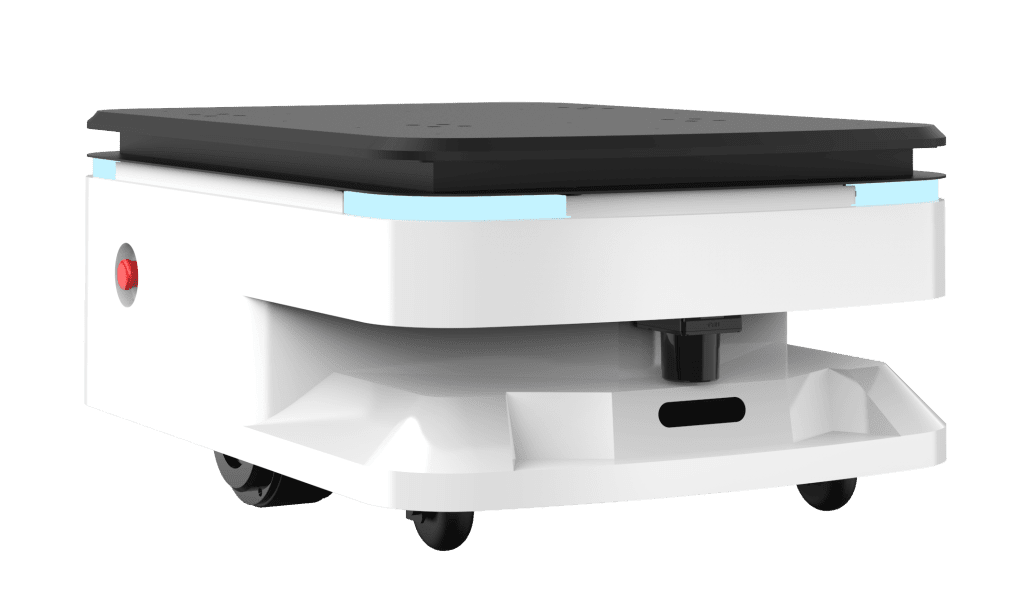

Technical Details
Product Parameters
| Operating systems | Android 5.1 operating system and above |
|---|---|
| Whole machine size | 804mm (L) × 590mm (W) × 317mm (H) |
| Net weight | 65KG |
| Screen | 7 inches (resolution 1024 × 600) |
| Travel speed | 0.1–1.0 m/s |
| Maximum load capacity | 300KG |
| Charging time | 6 hours (with automatic recharge) |
| Navigation accuracy | ±10cm |
| Battery parameters | Lithium iron phosphate 38.4V / 25Ah |
| Battery life | Full load 8 hours, no load 25 hours |
| Charging method | Automatic re-charging, direct charging |
| Motor Drive | 5.5 inch wheel motor |
| Adapter | Input: AC110-240V 50-60HZ; Output: 43.2V-5A |
| Charging Pile Parameters | Overcurrent protection, intelligent power failure; output rated voltage: 43.2V DC; output rated current: 5A |
Support
Frequently Asked Questions
What is the maximum payload of Fly Boat Robot Chassis?
The Fly Boat Robot Chassis supports a maximum payload capacity of 300KG, making it suitable for heavy-duty industrial applications including warehouse material transport, factory automation, and logistics operations requiring substantial load-bearing capabilities.
What navigation accuracy does Fly Boat provide?
Fly Boat delivers precise navigation accuracy of ±10cm using advanced laser SLAM technology combined with dual 3D cameras. This high-precision positioning ensures reliable autonomous operation in complex industrial environments with consistent route adherence.
Which operating system does Fly Boat use?
Fly Boat runs on Android 5.1 operating system and above, providing a familiar development environment. The platform includes a comprehensive open SDK with API interfaces, enabling developers to build custom applications and integrate third-party systems seamlessly.
How long does the battery last under full load?
Under full 300KG load conditions, Fly Boat operates for 8 hours continuously. In no-load scenarios, battery life extends to 25 hours. The lithium iron phosphate battery supports automatic recharging and requires approximately 6 hours for a complete charge cycle.
Does Fly Boat support autonomous elevator integration?
Yes, Fly Boat features autonomous up and down lift capabilities, enabling seamless multi-floor operations. The robot can automatically call elevators, navigate between floors independently, and perform delivery tasks across different building levels without human intervention.
