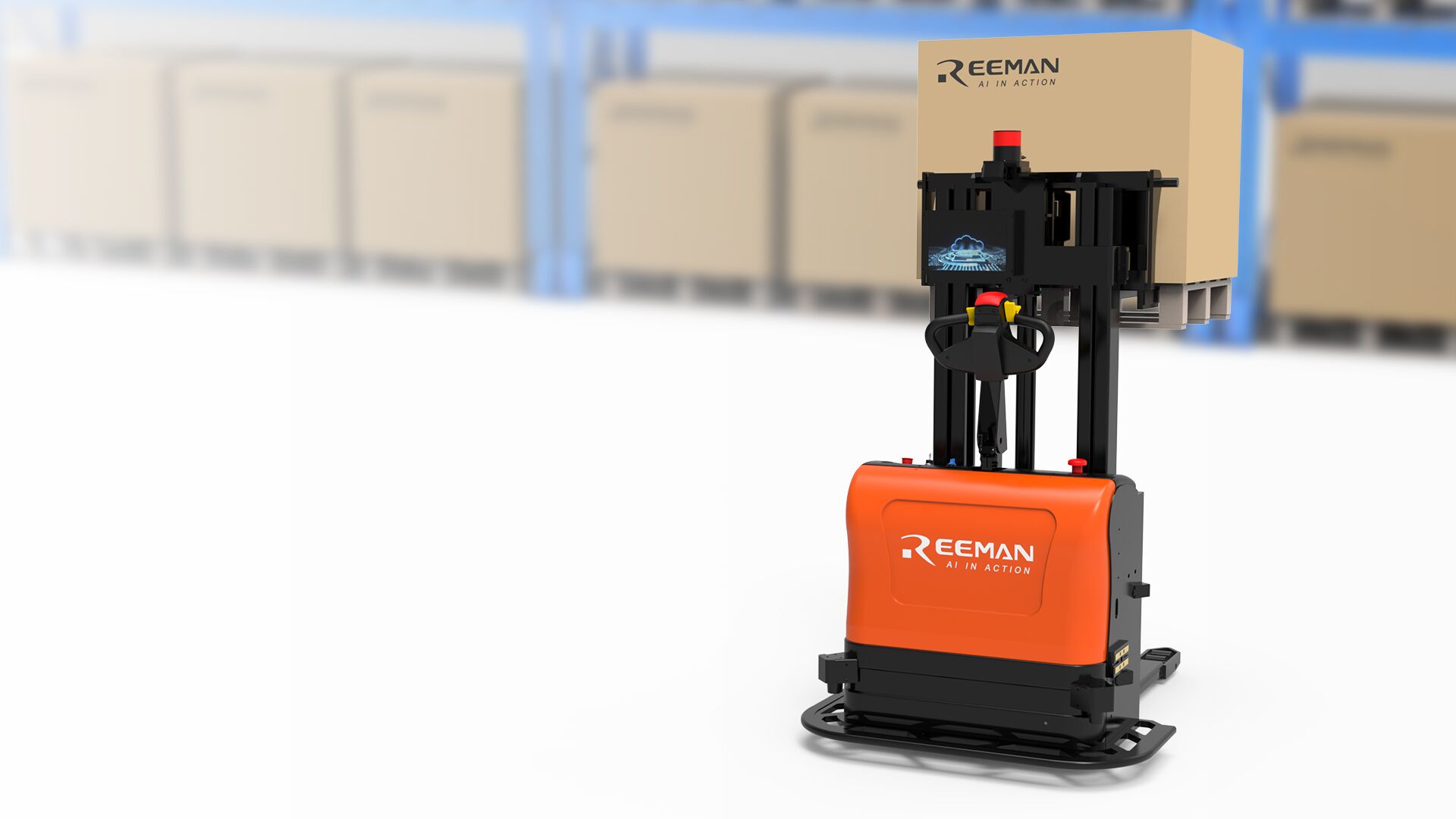

RBOT30F
Autonomous
Autonomous
Forklift trucks
1.5T high-stacking AGV with Laser SLAM navigation for smart warehouses.
Request a Free TrialKey Highlights
·1.5T Large Payload
·Laser SLAM Navigation
·Intelligent Obstacle Avoidance.
·Automatic charging
·40,000 ㎡Of Navigational Mapping
·Autonomous Dispatch System
·2.5m Jacking Heigh
·60m Single-line Laser Radar

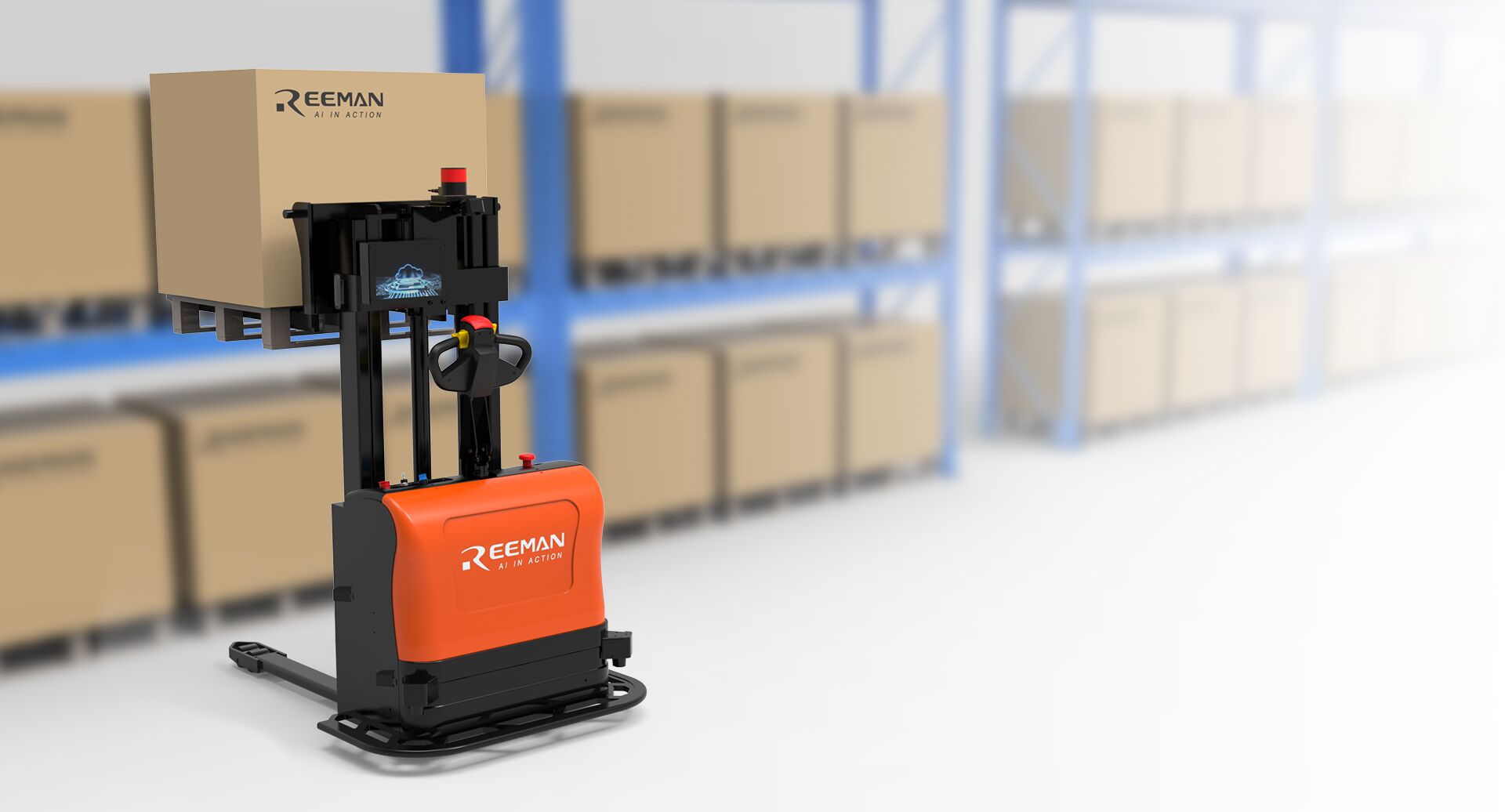

2.5m lifting height
Stacking Carrying Multi-scenario use

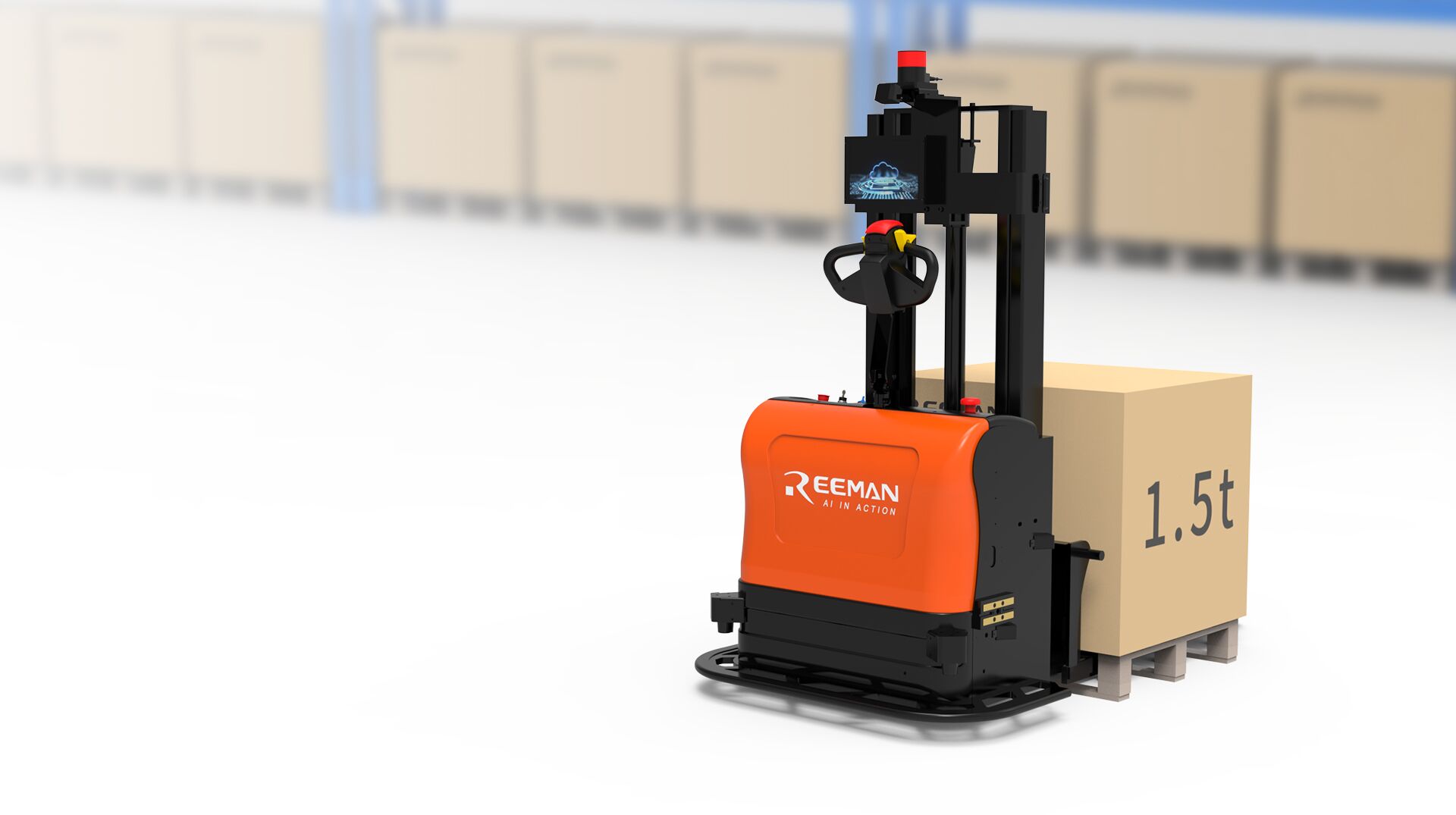

1.5T Large Payload
Maximum load capacity of 1.5 tonnes
with a lifting height of 2.5m

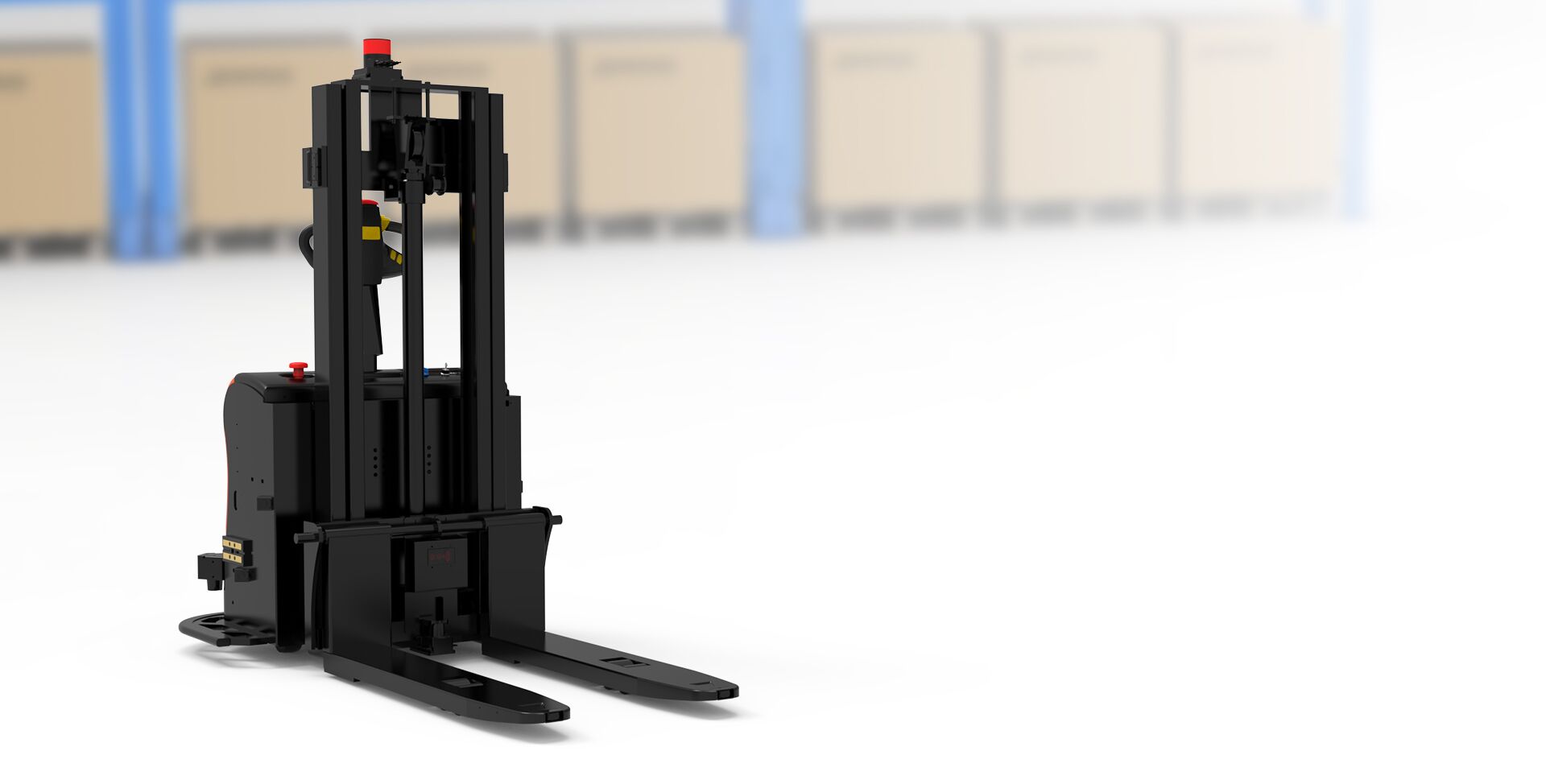

Intelligent Obstacle Avoidance
3D cameras + laser radar for
active avoidance and safer operation

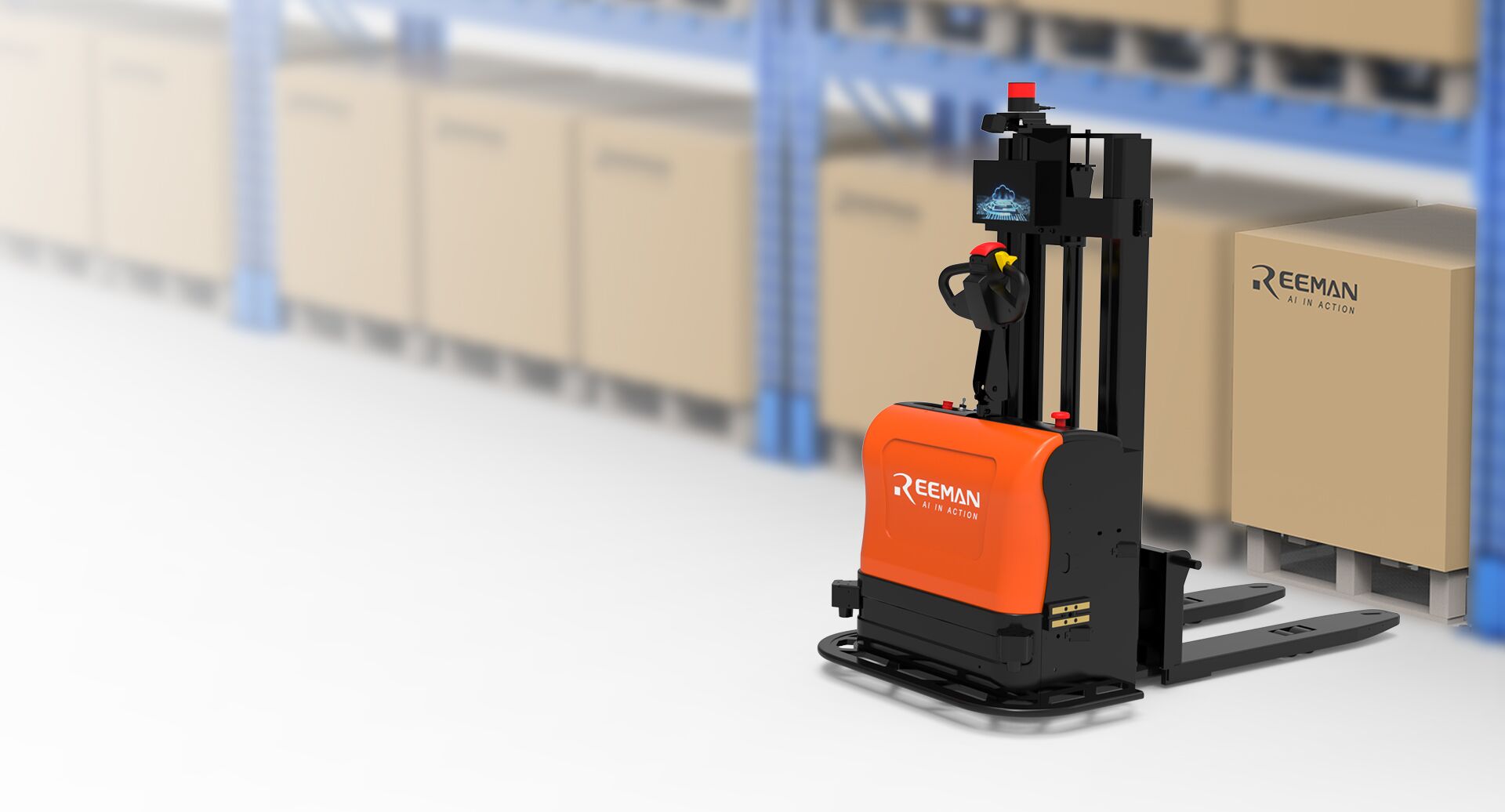

Laser SLAM Navigation
Laser navigation, no coding required
simple and easy deployment of
robotic forklifts.

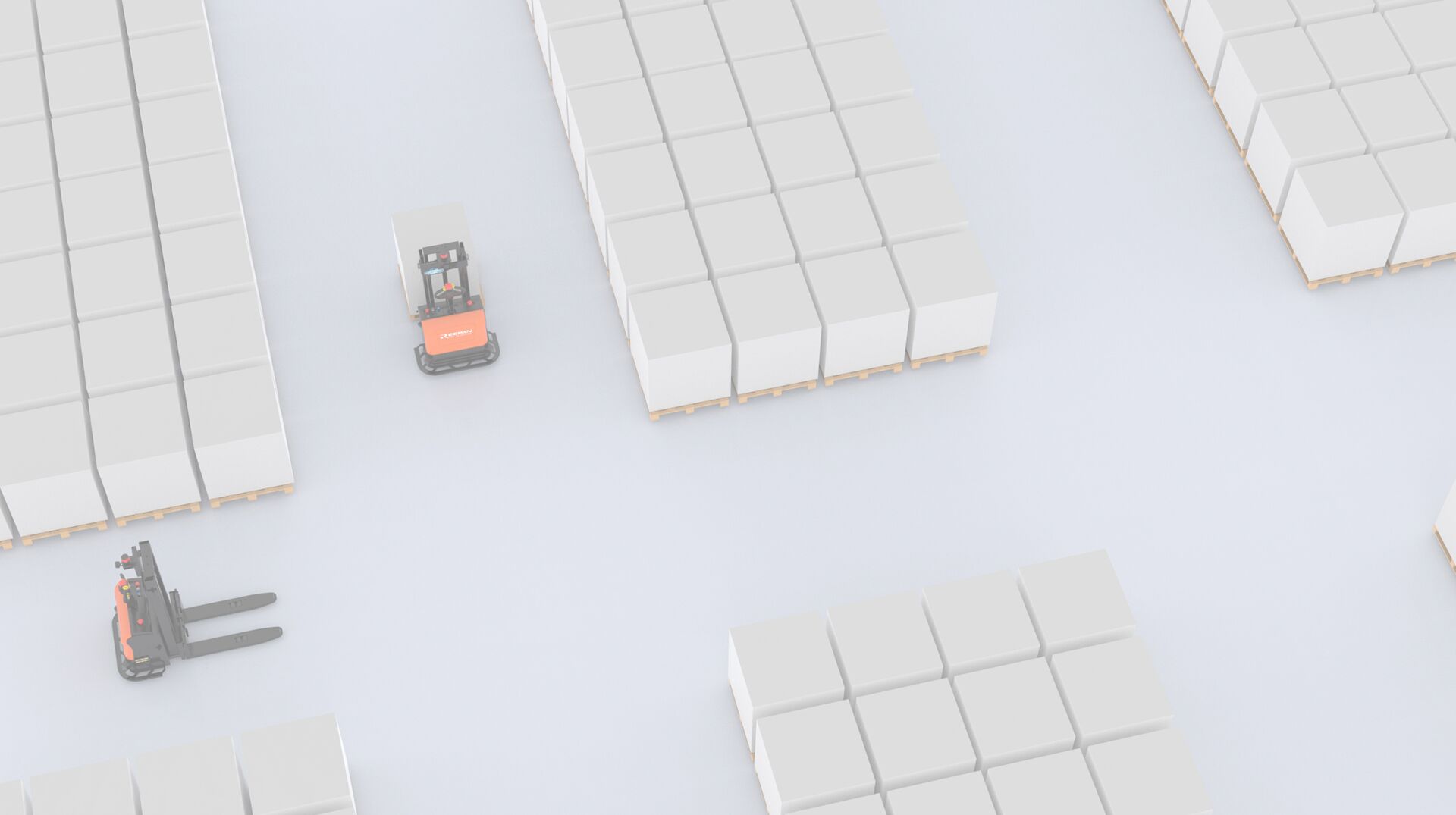

40,000 ㎡ Of Navigational Mapping
60m single line LiDAR, 1.6m narrow lane
access, meets the needs of large area and
complex environment usage

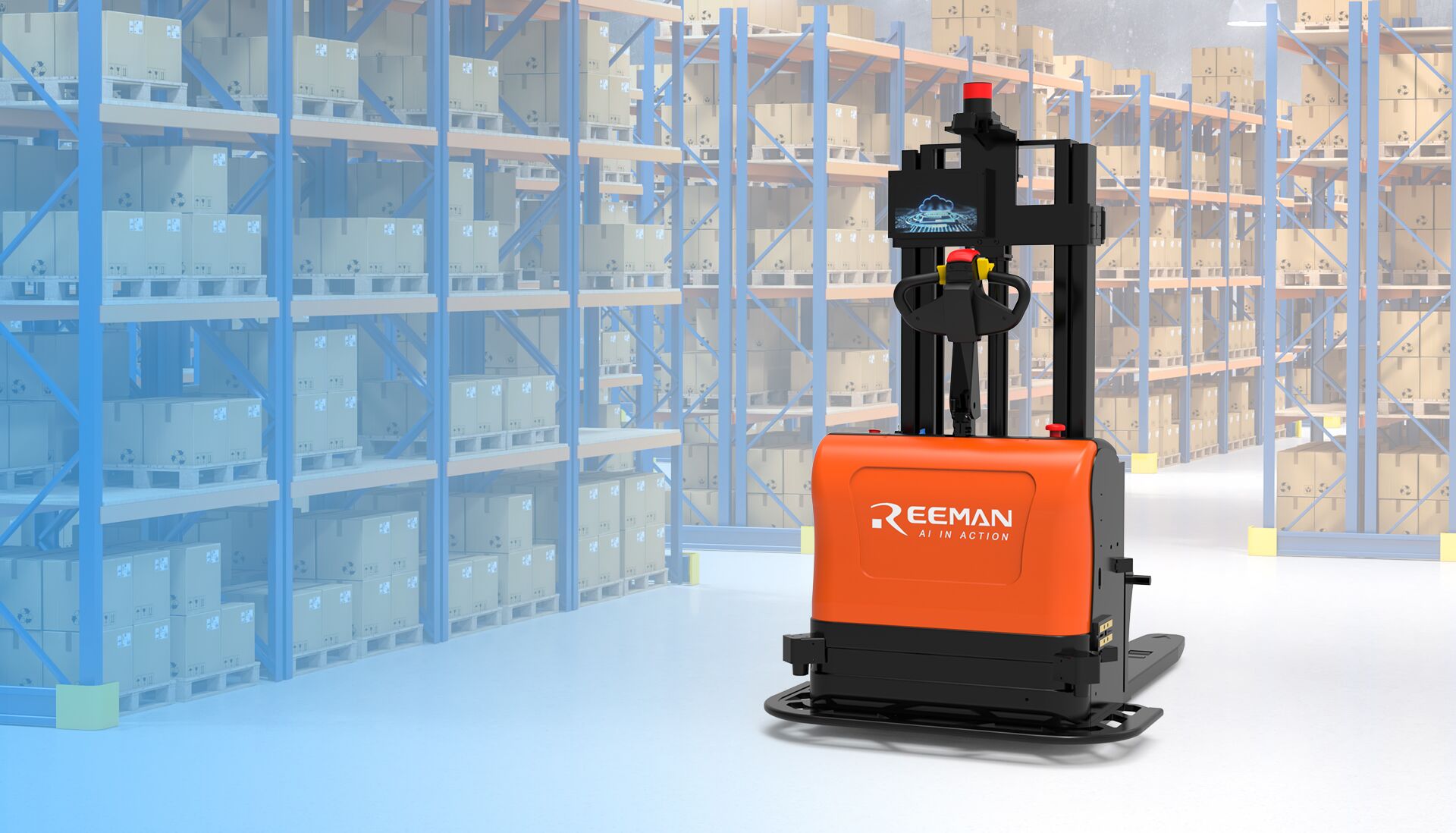

Autonomous Dispatch System
Achieve unified internal deployment
of robots for efficient distribution.

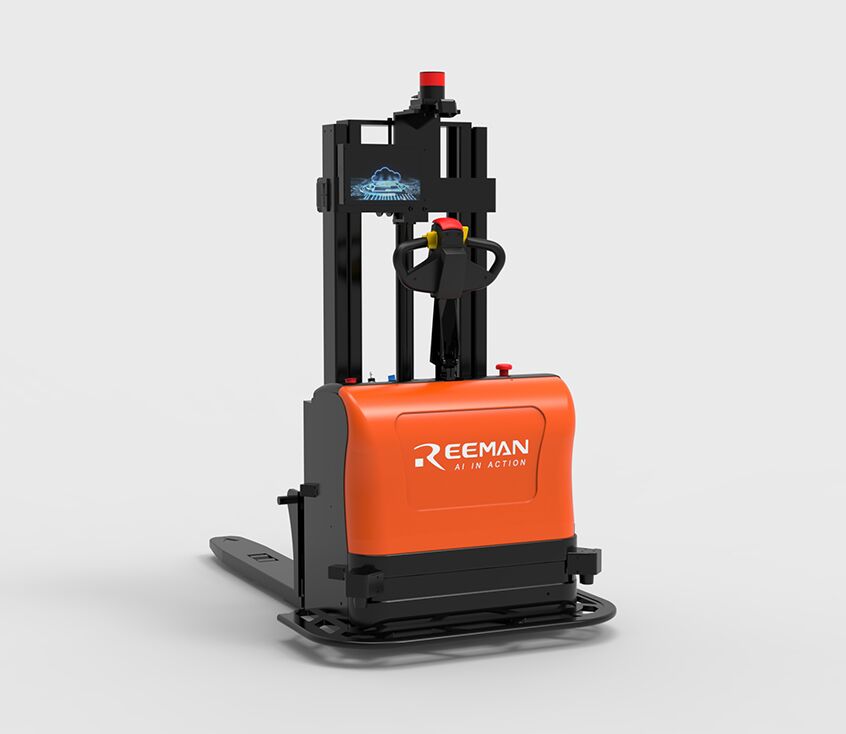

Product parameter
| Model | RBOT30F |
|---|---|
| Driving method | Electronic steering &AC servo motor |
| Operation type | Walking &Automatic |
| Maximum load | 1500kg |
| Load center distance | 500mm |
| Vehicle weight (including battery) | 910kg |
| Body size | 1950mm(Length) 950mm (Width) 1900mm(Height) |
| Fork size | 1150mm/160mm/60mm |
| Fork outer width | 685mm |
| Fork lifting height | 2585mm |
| Minimum fork height | 85mm |
| Maximum height of gantry during operation | 3050mm |
| Ground clearance at center of wheelbase | 30mm |
| Turning radius | 1500mm |
| Tire type (front/rear/additional) | Polyurethane Wheel |
| Tire size,front | 210mm×70mm |
| Tire size,rear | 80mm×70mm |
|---|---|
| Tire size,additional wheels | 100mm×50mm |
| Number of wheels front/rear (x=drive wheel) | 1/2/4 |
| front wheelbase | 866mm |
| Rear wheelbase | 525mm |
| Aisle width pallet 1000*1200 (1200 across fork placement) | 2200mm |
| Aisle width pallet 800*1200 (1200 placed along the forks) | 2100mm |
| Travel speed,full/no load | 4km/h,5.6km/h |
| Lifting speed,full/no load | 140 m/s |
| Descent speed,full/no load | 101m/s |
| Climbing speed,full/no load | 8%,15% |
| Service brake | electronic brake |
| Drive motor power | 0.8kw |
| Lifting motor power | 2.2kw |
| Battery voltage | 48v |
| Battery weight | 26*4kg |
| Driver ear noise | <70dB(A) |
| Charging method | automatic charging |
